Тензодатчик серии GML-S3 E типа S от General Measure представляет собой прочное и точно спроектированное устройство с точностью класса C3. Доступны варианты корпуса из легированной стали или нержавеющей стали. Компактный размер и простота установки обеспечивают удобство использования.
Поддерживает грузоподъёмность от 100 кг до 5000 кг и подходит для различных промышленных устройств, таких как крановые весы, ленточные весы и смесительные силосы. Точное взвешивание помогает сократить потери продукции и снизить расходы.
GML-S3 E-0.1t, GML-S3 E-0.2t, GML-S3 E-0.25t, GML-S3 E-0.3, GML-S3 E-0.5t, GML-S3 E-1t, GML-S3 E-2t, GML-S3 E-5t

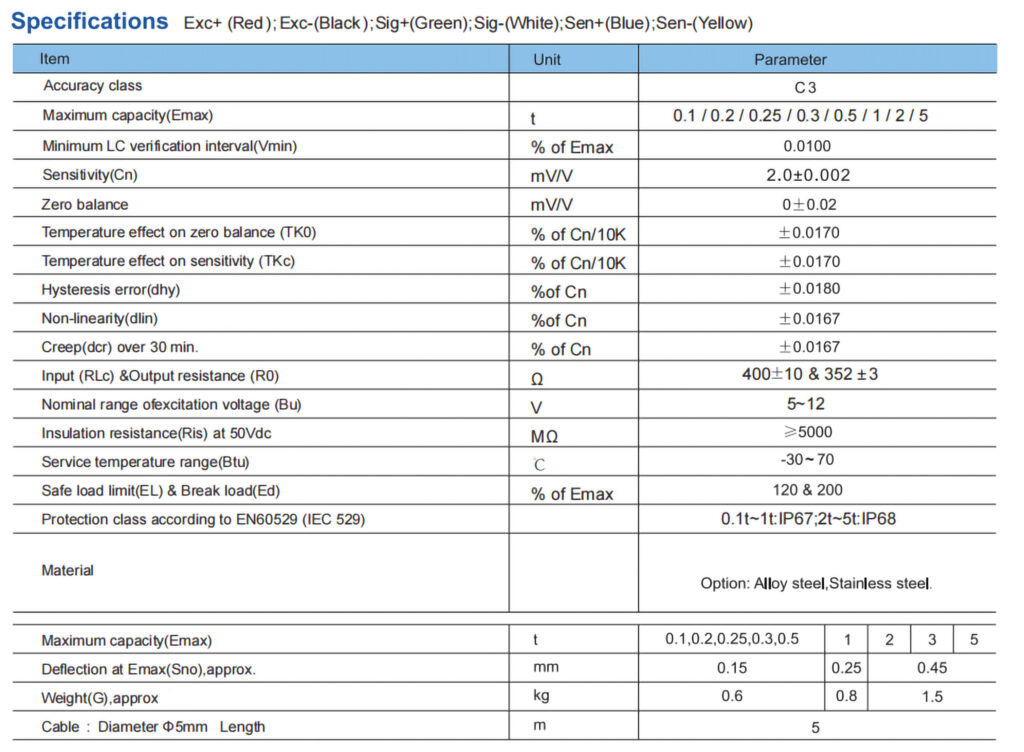

Грузоподъёмность: 0,1~5 т
Материал: Легированная сталь / нержавеющая сталь
Тип: S-Beam
Степень защиты: IP67/IP68
Область применения:
— Крановые весы
— Ленточные весы
— Смесительные силосы
— Различные промышленные системы точного взвешивания
