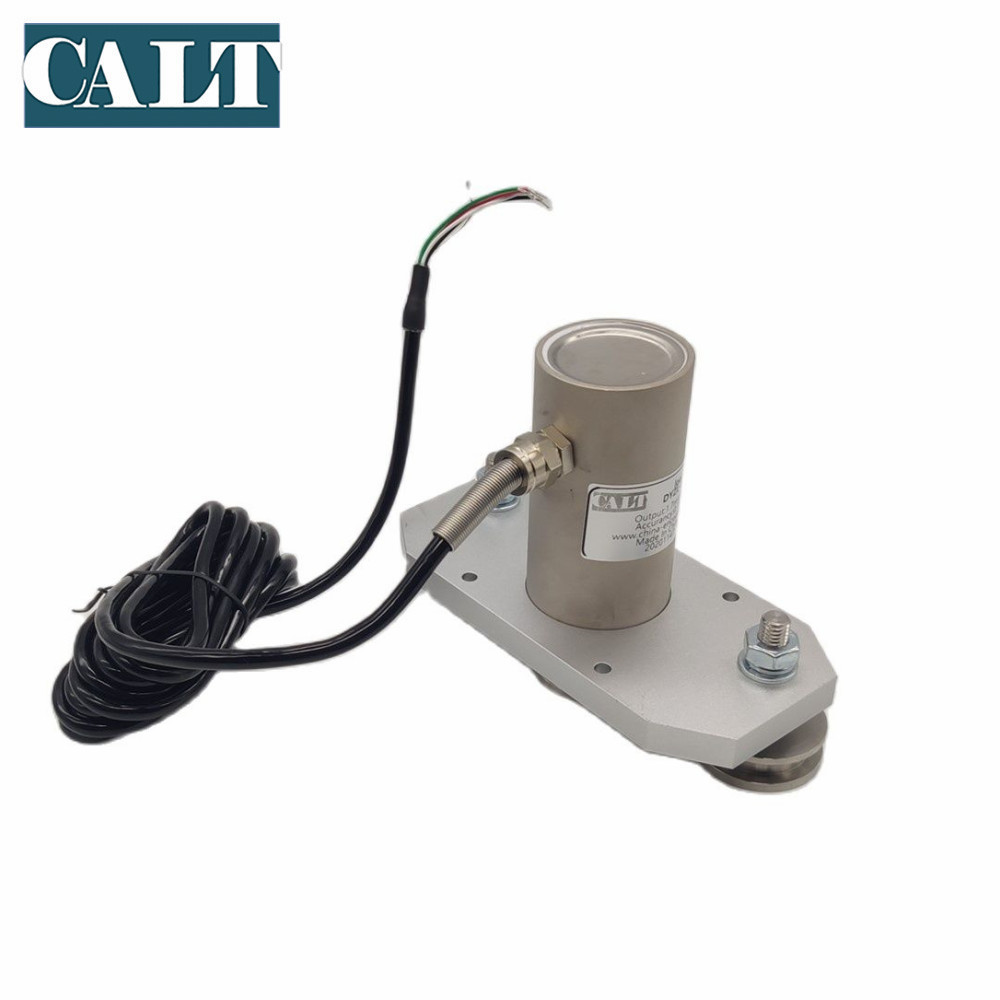

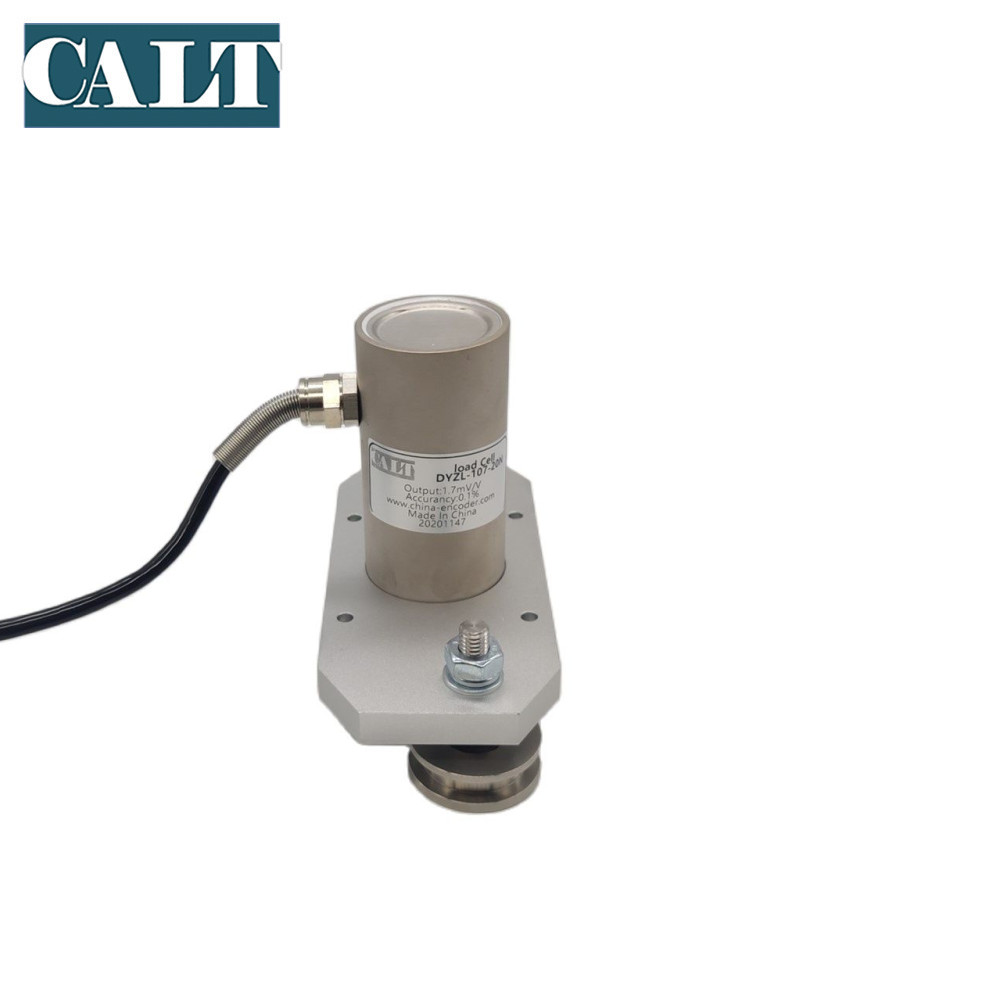

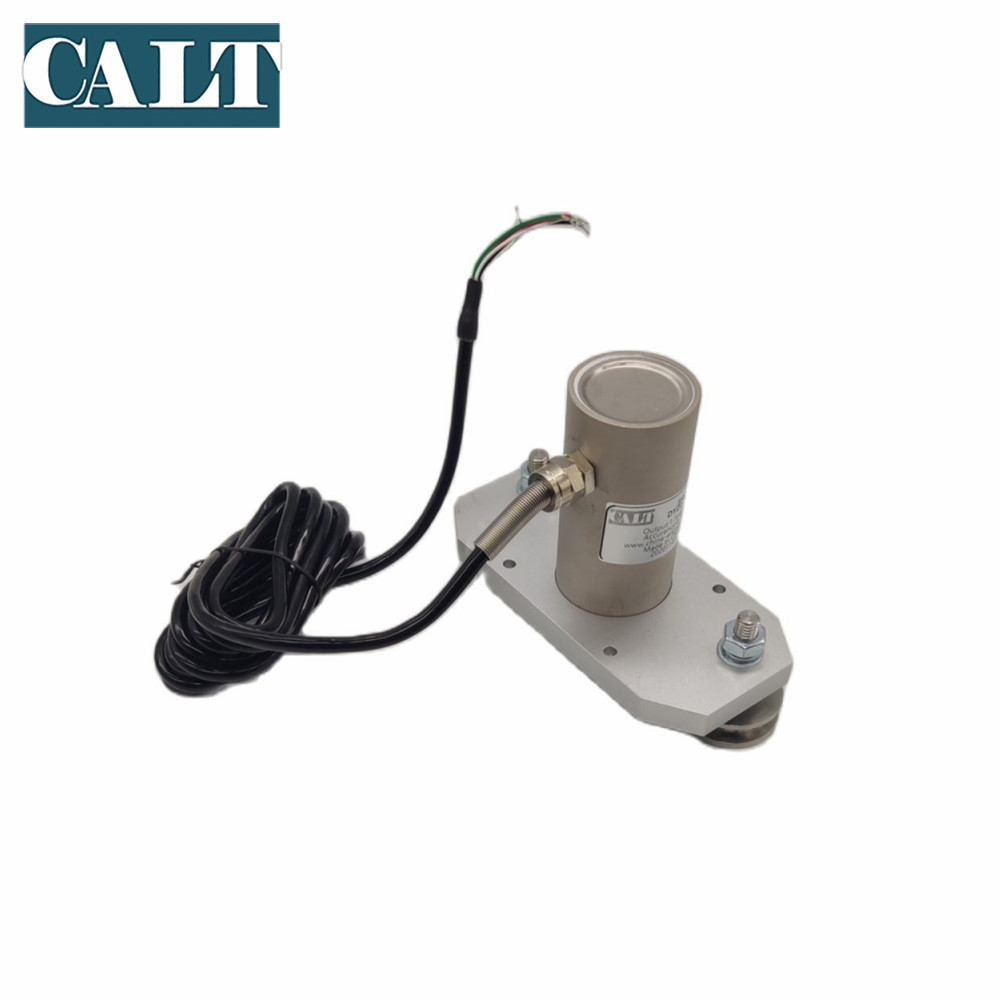

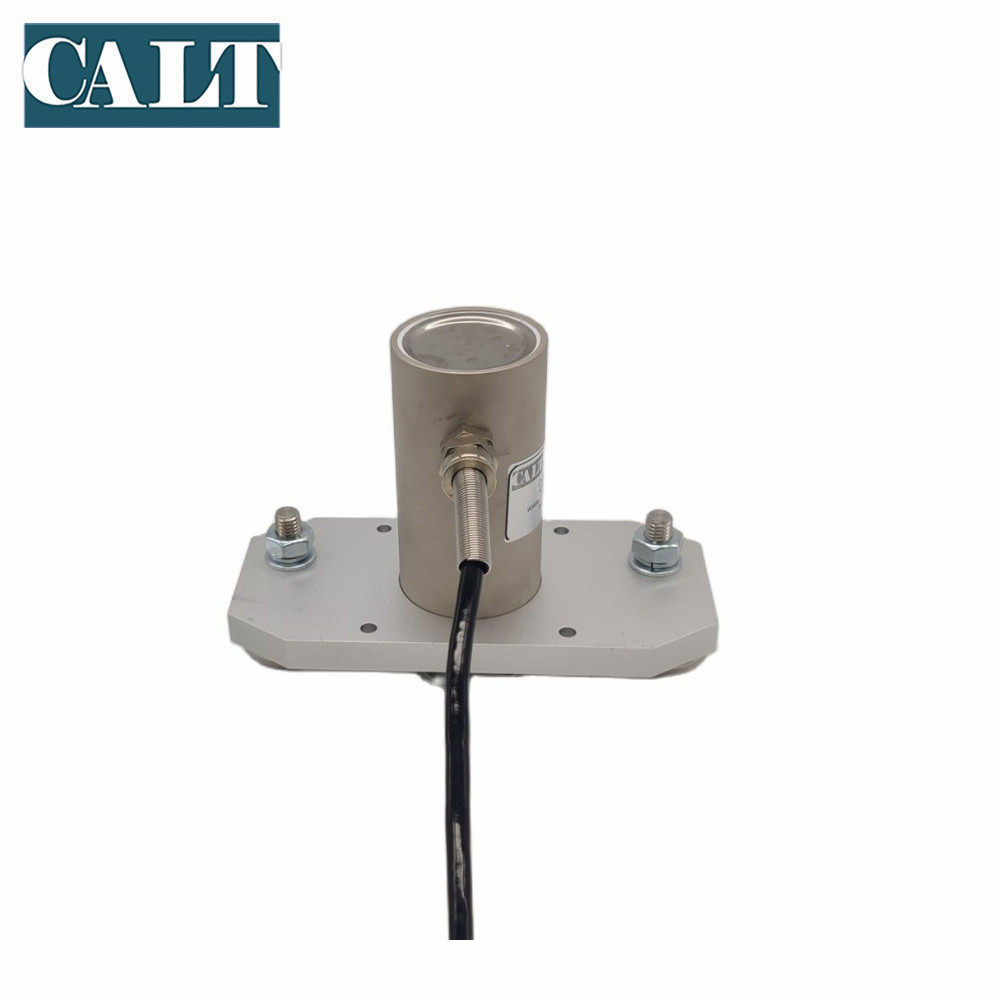

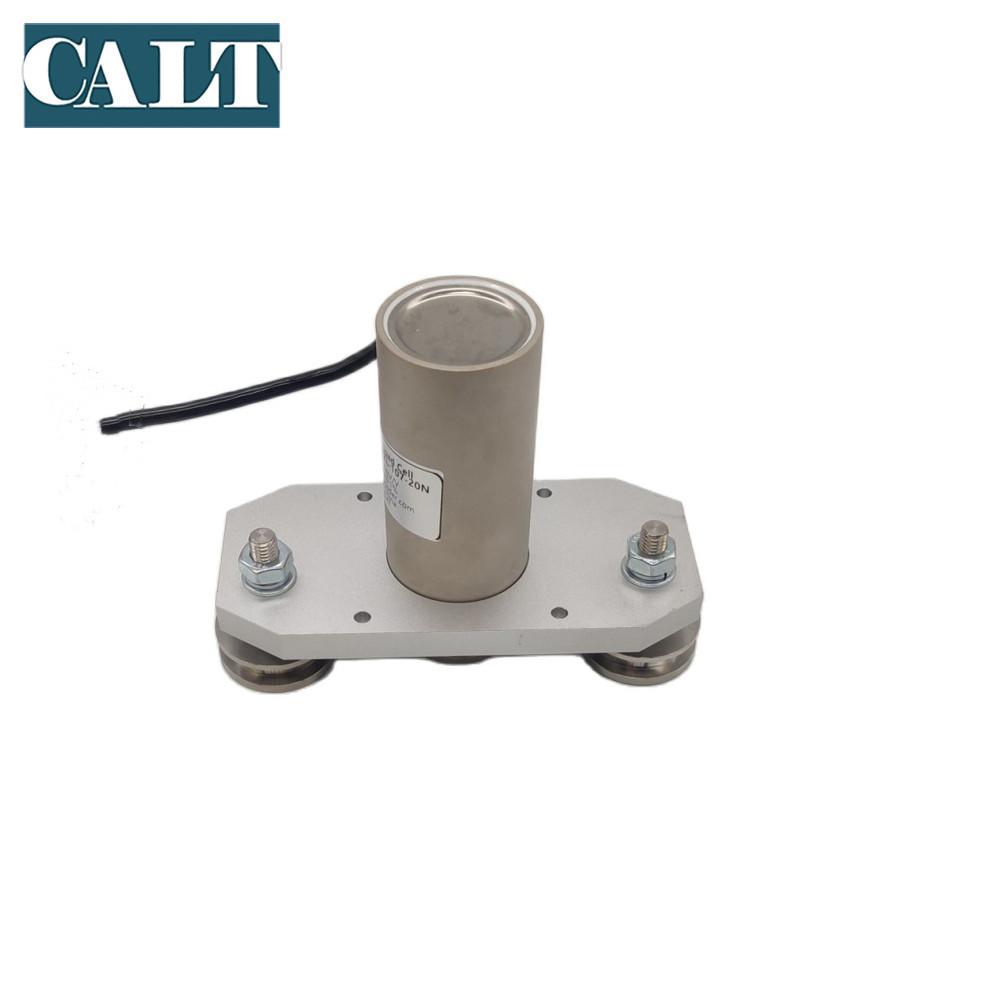

Tension Sensors DYZL-107
Characteristic and Application fields
It has the advantages of bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel.
Universal materisl testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and othere tension and pressure testing instruments as well as automation equipment and testing field.

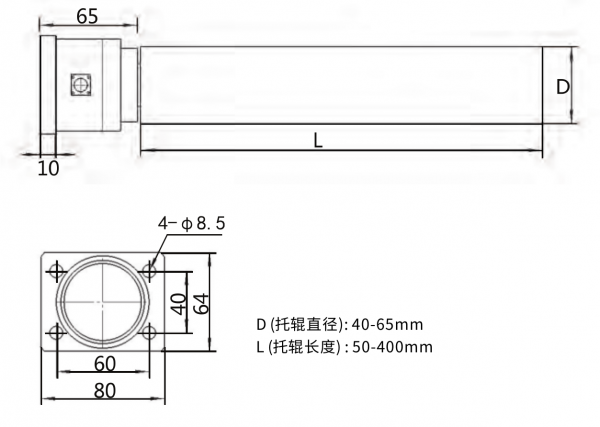

Dimension(mm)
Capacity （kg） 2 5 10 20 30 50 100
Wiring diagram

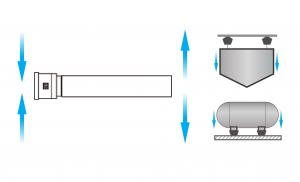

Force diagram
Technical parameter
| Parameter | Unit | Technical
Specifications |
Parameter | Unit | Technical
Specifications |
| Sensitivity | mV/V | 2.0±10% | Temperature coefficient of sensitivity | ≤%F·S
/10℃ |
±0.05 |
| Nonlinear | ≤%F·S | ±0.1 | Operating temperature range | ℃ | -20℃～+80℃ |
| Hysteresis | ≤%F·S | ±0.1 | Input resistance | Ω | 350±20Ω |
| Repeatability | ≤%F·S | ±0.1 | Output Resistance | Ω | 350±5Ω |
| Creep | ≤%F·S/30min | ±0.1 | Safe Overload | ≤%F·S | 150% F·S |
| Zero output | ≤%F·S | ±1 | Insulation resistance | MΩ | ≥5000MΩ(100VDC) |
| Zero temperature
coefficient |
≤%F·S/10℃ | ±0.05 | Excitation voltage | V | 5V-15V |
