Models

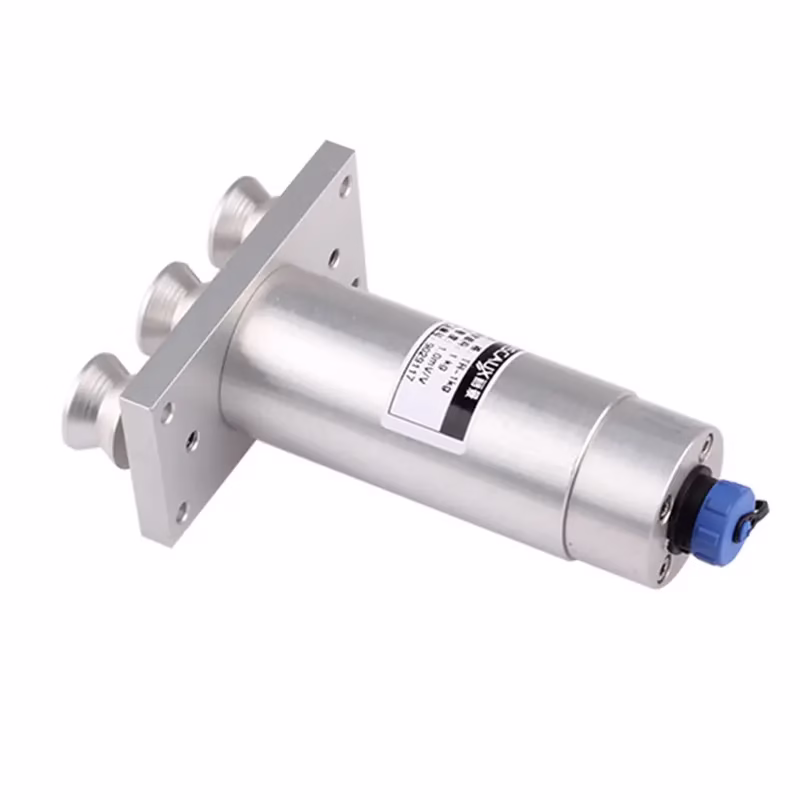

TR Wire and Strip Tension Sensor Three Roller Tension Measuring Instrument
Features
1. Capacities (kg): 0.1 to 50
2. Resistance strain measurement methods
3. Compact structure, durable in use, easy to install
4. High comprehensive precision, high stability
5. Roller is made of Aluminum, chromium plating Alloy Steel, Plastic, Ceramic
6. Be matched with amplifiers, 0-10v or 4-20mA are available
7. On-line tension measurement accurately
Applications:
1. On-line measurement of cables, fibers, wires, metal wires and other products for online continuous tension measurement
2. Paper making, chemical industry, textile, packaging and other industries

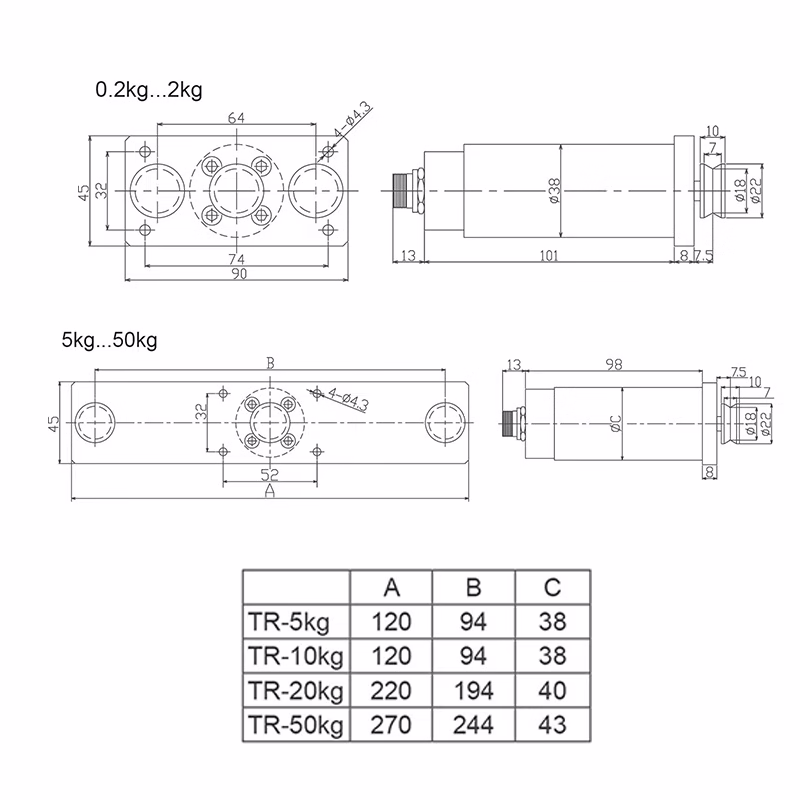

Dimensions
Specifications
Specifications: | ||
Rated Load | kg | 0.1,0.5,1,2,5,10,20,50 |
Rated Output | mV/V | 1.5 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.3 |
Compensated Temp.Range | ℃ | -10~+40 |
Operating Temp.Range | ℃ | -20~+70 |
Temp.effect/10℃on output | %R.O./10 ℃ | ±0.03 |
Temp.effect/10℃ on zero | %R.O./10℃ | ±0.03 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 5 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±5 |
Insulation resistance | MΩ | =5000(50VDC) |
Safe Overload | %R.C. | 50 |
Ultimate Overload | %R.C. | 300 |
Material | Aluminum | |
Degree of protection | IP65 | |
The length of the cable | m | 3m |
※ 제품 사양은 예고 없이 변경될 수 있습니다.
