7-разрядный LED-дисплей
Поддержка одного аналогового входа весов, до 12 тензодатчиков
Сертификация: CPA 6000e, поддержка до 150 000 делений
Базовая комплектация: 1 последовательный порт (RS232/485), 2 LAN-порта, 1 высокоточный АЦП для весов
Поддержка протоколов MODBUS-RTU и MODBUS-TCP (MODBUS-TCP поддерживается только в версии с одним LAN-портом)

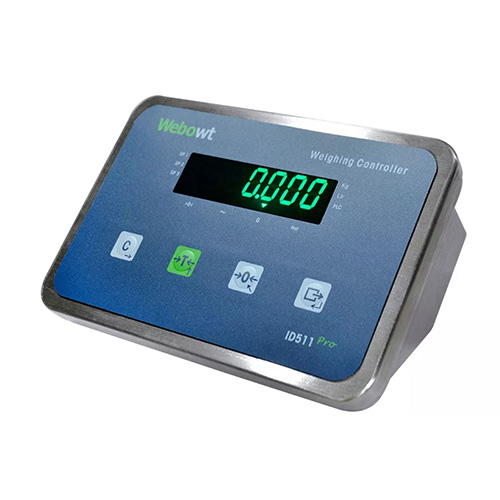

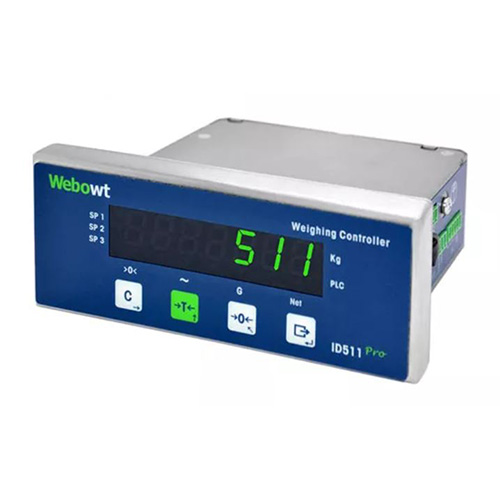

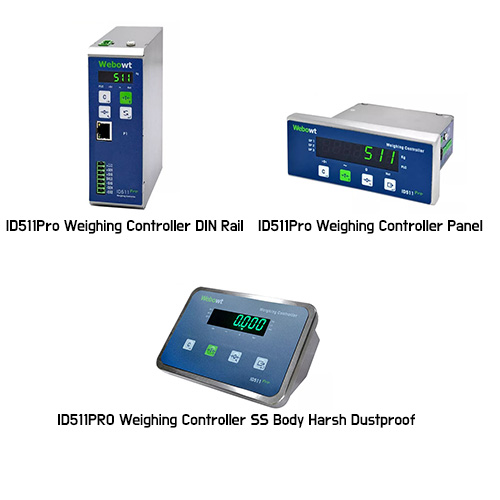

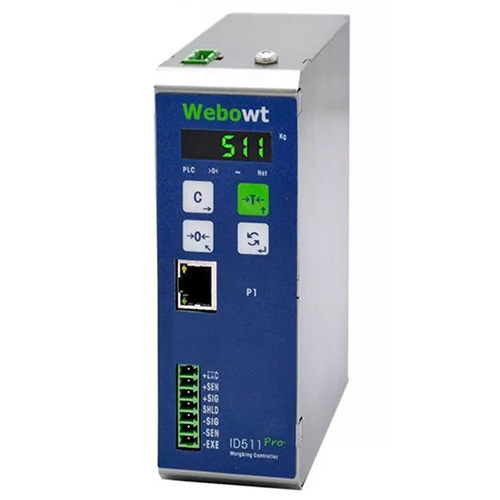

ID511Pro Weighing Controller DIN Rail, ID511Pro Weighing Controller Panel, ID511PRO Weighing Controller SS Body Harsh Dustproof
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Certification: CPA 6000e, division up to 150,000
Standard with serial port x 1 (RS232/485), 2 LAN ports, and 1 high precision weighing AD
Standard supports for MODBUS-RTU and MODBUS-TCP (for single LAN port version only)
Optional
Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing
![ZHIMIN / BST106-M60S[L] / Преобразователь сигналов тензодатчика рельсового типа](https://casscale.kz/wp-content/uploads/2025/08/dfc791c742470654b5e69493518d43b5_medium-300x300.png)
Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing
| Type: | INDICATOR | Applicable Industries: | Home Use,Office Use,
Other |
| Showroom Location: | None | Condition: | New |
| Place of Origin: | China | Warranty: | Unavailable |
| Key Selling Points: | High Productivity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Not Available | Video outgoing-inspection: | Provided |
| Warranty of core components: | Not Available | Core Components: | Other |
| Modle: | DS3 stainless steel | After Warranty Service: | Online support |
| Local Service Location: | None |
| Customized support: | OEM | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Model Number: | ST100 |
| Power Supply: | -3.6 mV/V ~ 3.6 mV/V | Display Type: | Double-row 6-position LED display |
| Sensor Type: | Resistance strain sensor | Number of decimal place: | 0,0.0,0.00,0.000,0.0000,0.00000 |
| On-off input voltage: | DC24V | On-off input current: | 4-6mA |
| Division value: | 1, 2, 5, 10, 20, 50 | Max weighing display range: | 999999 |
| Sensor excitation voltage: | DC5V, up to 8 350Ω sensors connection in parallel | A/D switching speed: | ≤400 times / second |
| Customized support: | OEM, ODM | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Model Number: | XK3190-A9+ |
| Power Supply: | DC8V | Display Type: | 7 bits LED ,7 status indications |
| Model: | A9/ A9P | Input signal range: | 1mV~24mV |
| Load cell Excitation: | Dc 8V | Max. load cell connection: | 8 at 350 ohm |
| Display: | 7 bits LED ,7 status indications | Standard interface: | RS232C , Scoreboard at 20mA current loop Parallel printer |
| Customized support: | OEM | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Model Number: | LP7553 |
| Power Supply: | -6mV ~ 19.5mV | Display Type: | 6-digit 50mm LED or LCD with backlight |
| Accuracy class: | OIML III | Resolving: | display50000, internal code 2000000 |
| Excitation voltage: | DC3.3 V | Power supply: | AC110/220v 50/60Hz |
| Model Number: | BBM-(M) | Place of Origin: | Zhejiang, China |
| Brand Name: | SANTWELL | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 10-500KG | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
| Customized support: | OEM | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Model Number: | LP7510 |
| Power Supply: | -5mV ~ 20mV | Display Type: | 6-digit 20mm LED or 25mm LCD with backlight |
| Display: | 6-digit 20mm LED or 25mm LCD with backlight | Accuracy class: | OIML III |
| Input voltage: | -5mV ~ 20mV | Resolving: | display50000, internal code 2000000 |
| Excitation voltage: | DC5V | Power supply: | AC110/220V 50/60Hz DC9V or built-in 6V/4Ah lead acid battery |
Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing
| Warranty: | 12 months | Customized support: | OEM, ODM, OBM |
| Place of Origin: | China | Brand Name: | SANTWELL |
| Model Number: | SK210C | Model: | SK210C |
| Display: | 6-digit 20mm LED or 25mm LCD with backlight | Accuracy class: | OIML III |
| Stimulating voltage: | +5 VDC | A/D converting speed: | 80 or 10 SPS |
| Interval: | 1/2/5/10/20/50 | Front panel key: | ON/OFF TOTAL HOLD TARE ZERO SET |
| Working temperature: | -10~40℃ | Storage temperature: | -20~+60℃ |
| Power: | 6V/4Ah rechargeable battery 110/220VAC |
| Customized support: | OEM | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Model Number: | XK315A1-7 |
| Power Supply: | / | Display Type: | 6-digit 38mm red LED |
| Accuracy class: | III | Minimum/maximum load cell impedance: | 87 Ω to 1000 Ω |
| Load cell excitation voltage: | Uexc = 5 V | Cable connection: | 4 wires |
| Fraction of mpe: | pind = 0.5 | Minimum input voltage: | Umin = 0.5 Mv |
