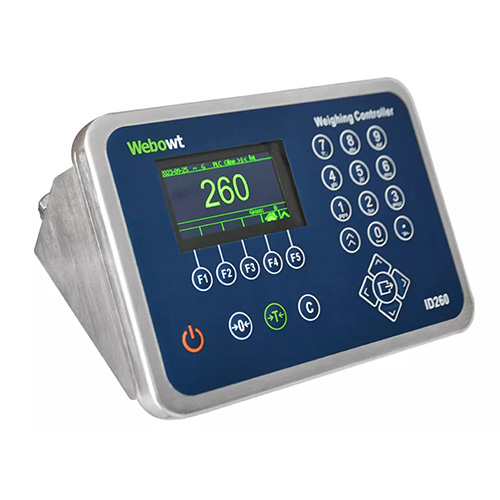

ID260

Корпус полностью из нержавеющей стали, подходит для различных жестких промышленных условий, доступны разные варианты установки.

Оснащен новым OLED-дисплеем, отображение информации в графическом формате, поддержка нескольких языков, включая китайский и английский.

Широкий набор интерфейсов связи: последовательные порты, USB, Ethernet; поддержка передачи данных в MES-системы.

Функции:

— Основное взвешивание
— Взвешивание автомобильных грузов (транспортные весы)
— Подсчет единиц (counting)
— Контроль веса (inspection)
— Взвешивание животных

Широко применяется в пищевой, фармацевтической, химической и электронной промышленности.

Add to Wishlist

Models

ID260

Features

ID260 general industrial weighing instrument, all stainless steel shell, suitable for a variety of harsh industrial environments, a variety of installation forms to choose from, new OLED display, graphical display, support Chinese and English and other Chinese, rich communication interface, can realize the transmission of transaction data through serial port, USB and Ethernet, and can be connected to the MES system.
In addition to basic weighing applications, it also provides a wide range of applications such as truck scale weighing, counting, checkweighing, animal weighing, etc., which are widely used in food, pharmaceutical, chemical, electronics and other industries.

Optional

Santwell / ST100 / 알루미늄 합금 하우징 정량 호퍼 무선 로드셀 컨트롤러 계량 인디케이터

AVAILABILITY: In stock

Customized support:	OEM	Place of Origin:	Zhejiang, China
Brand Name:	Santwell	Model Number:	LP7530
Power Supply:	-3mV ~ 30mV	Display Type:	6-digit 10mm LED display
Accuracy class:	OIML III	Input voltage:	-3mV ~ 30mV
Resolving:	display30000, internal code 2000000	Excitation voltage:	DC5V
Power supply:	AC220V 50/60Hz DC24V

Customized support:	OEM, ODM	Place of Origin:	Zhejiang, China
Brand Name:	Santwell	Model Number:	LP7516
Power Supply:	-7mV ~ 12.8mV	Display Type:	6-digit 20mm LED or 25mm LCD with backlight
Display:	6-digit 20mm LED or 25mm LCD with backlight	Accuracy class:	OIML III
Input voltage:	-7mV ~ 12.8mV	Resolving:	display15000, internal code 1000000
Excitation voltage:	DC3.3V	Functions:	accumulate, hold, animal weighing, check, sort

Warranty:	1 years	Place of Origin:	Zhejiang, China
Brand Name:	Santwell	Model Number:	XK3190-A12E
Accuracy:	Gradelll,n=3000	Sample Rate:	10 times/second
Load cell sensitivity:	1.5~3mV/V	Scale interval:	1/2/5/10/20/50 for option
Scoreboard interface (optional):	In serial output mode:current loop signal, transmission distance≤50m	Communication interface (optional):	RS232C
Power supply:	Battery DC6V/4AH	Operating temperature/humidity:	0-40℃;≤90%RH
Baud rate:	1200/2400/4800/9600 optional

Warranty:	12 months	Customized support:	OEM, ODM, OBM
Place of Origin:	Zhejiang, China	Brand Name:	SANTWELL
Model Number:	SK330	Model:	SK330
Display:	6-digit 20mm LED	Accuracy class:	OIML III
Stimulating voltage:	+5 VDC	A/D converting speed:	80 or 10 SPS
Interval:	1/2/5/10/20/50	Front panel key:	ON/OFF TOTAL HOLD TARE ZERO SET
Working temperature:	-10~40℃	Storage temperature:	-20~+60℃
Power:	110/220VAC

Customized support:	OEM	Place of Origin:	Zhejiang, China
Brand Name:	Santwell	Model Number:	ST100
Power Supply:	-3.6 mV/V ~ 3.6 mV/V	Display Type:	Double-row 6-position LED display
Sensor Type:	Resistance strain sensor	Number of decimal place:	0,0.0,0.00,0.000,0.0000,0.00000
On-off input voltage:	DC24V	On-off input current:	4-6mA
Division value:	1, 2, 5, 10, 20, 50	Max weighing display range:	999999
Sensor excitation voltage:	DC5V, up to 8 350Ω sensors connection in parallel	A/D switching speed:	≤400 times / second
