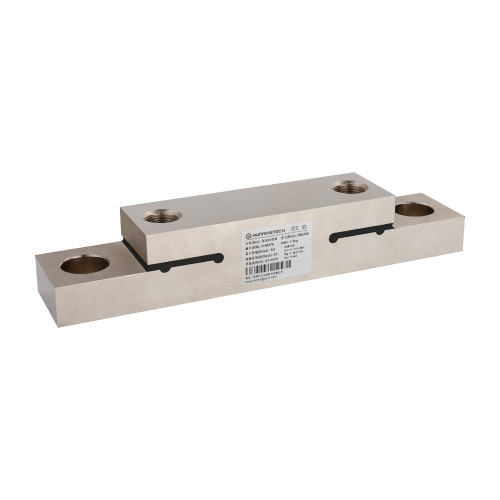

DB520A-15t
Ёмкость: 15 т
Материал: легированная сталь
Тип: Double-ended Shear Beam
Степень защиты: IP68
Применение: бортовые системы взвешивания транспортных средств и другие электронные весовые устройства
50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor FA410 is a model of Column Type Load Cell, it is designed to measure load ranges from 50kN up to 3000kN. The material Alloy Steel or Stainless Steel can be customized, its cable size is 5.4x6000mm, it supports IP67.
50-70t Spoke Type Load Cell FA120C is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120C can be used to measure load 50t and 70t capacity, its Zero Balance range is ±1%F.S., its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S..
This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.
3000N Or Customized Column Type Load Cell FA415 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA415 can measure 3000N or customized capacity, its Non-linearity and Repeatability both are 0.025%F.S. or customized, its cable size is ⌀4x2000mm or customized length, and its IP Class is IP65 or it also could be customized.
Изготовлена из легированной стали, герметизирована клеем и никелирована; модель обладает водонепроницаемостью и коррозионной стойкостью, обеспечивает степень защиты IP66.
50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.
500,1000,2000,5000,10000N Or Customized Column Type Load Cell FA402B is a model of Column Type Load Cell, it belongs to FA402 in our brand FIBOS FA4-Series, FA402B could measure load 500N, 1000N, 2000N, 5000N and 10000N or customized Capacity, its Creep(30min), Non-linearity, Hysteresis, Repeatability all ≤0.05%F.S. or could be customized, its weight is 0.1kg or customized.
500kN~20000kN Or Customized Column Type Load Cell FA408-D1 is a model of Column Type Load Cell, it belongs to model FA408 in our brand FIBOS FA4-Series, FA408-D1 could be used to measure load from 500kN to 20000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, its Cable size is ⌀3x5000mm or customized length.
50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell FA120A is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120A can be used to measure load 50kg,100kg,200kg,500kg and 1t capacity, its Creep(30min) and Repeatability both ≤0.03%F.S., and its Non-linearity and Hysteresis both ≤0.05%F.S..
0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load Cell FA906 is a model of our brand FIBOS FA9-Series, Column Type Load Cell FA906 can be used to measure load ranges up to 200N capacity, its Raw sensitivity range is 0.6~0.8, its Rated output range is 4~20mA, and its Zero Balance range is ±1%mV/V.
FA806 static load weighing module is based on the FA473 column load cell, with a range from 10t to 50t. It is characterized by its compact construction, which does not require the installation of additional accessories; the self-stabilizing load cell bearing head allows accurate and repeatable metering; quick and easy installation, saving installation and downtime for maintenance. The static load weighing module can be easily mounted on containers of various shapes and can be easily loaded, dosed, or mixed in this container.
5000N Or Customized Column Type Load Cell FA462 is a model of Column Type Load Cell, it can measure load 5000N or customized capacity, its Non-linearity and Repeatability are same 0.01%F.S. or customized, we could use Alloy Steel or other customized metallic material as its material.
