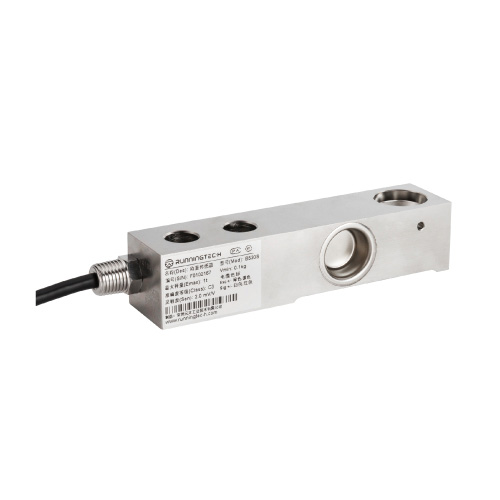

RUNNING TEC·H / B530S / Штанговый тензодатчик

Изготовлена из легированной стали, герметизирована клеем и никелирована; модель обладает водонепроницаемостью и коррозионной стойкостью, обеспечивает степень защиты IP66.

5000N Or Customized Column Type Load Cell FA462 is a model of Column Type Load Cell, it can measure load 5000N or customized capacity, its Non-linearity and Repeatability are same 0.01%F.S. or customized, we could use Alloy Steel or other customized metallic material as its material.

This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.

5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.

20,50,100,200,500kg Or Customized Spoke Type Load Cell FA119B is a model of our brand FIBOS FA1-Series, it belongs to FA119 which is in Spoke Type Load Cell category, FA119B can be used to measure load 20kg,50kg,100kg,200kg and 500kg or customized capacity, its Rated output range is 1.5±15%mV/V, its Cable size is ⌀1.2x3000mm or customized length.

0.5kN 1kN 2kN 3kN 5kN 10kN 20kN 50kN 100kN ≤0.1%F.S. Stainless Steel Column Type Load Cell is a model of Column Type Load Cell, its material is Stainless steel, it could measure load 0.5kN, 1kN, 2kN, 3kN, 5kN, 10kN, 20kN, 50kN and 100kN, its rated output is 1.5±10%mV/V, zero balance is ±0.02mV/V, its weight is 0.8kg or 2kg, and its creep(30min)≤0.1%F.S..

0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load Cell FA906 is a model of our brand FIBOS FA9-Series, Column Type Load Cell FA906 can be used to measure load ranges up to 200N capacity, its Raw sensitivity range is 0.6~0.8, its Rated output range is 4~20mA, and its Zero Balance range is ±1%mV/V.

5,10,20,50,1000kN Or Customized Column Type Load Cell FA407B is a model of Column Type Load Cell, it belongs to FA407 in our brand FA4-Series, FA407B is used to measure load 5kN, 10kN, 20kN, 50kN and 1000kN or customized capacity, its Cable size is ⌀6x5000mm or customized length, its weight is 2kg or customized.

3000N Or Customized Column Type Load Cell FA415 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA415 can measure 3000N or customized capacity, its Non-linearity and Repeatability both are 0.025%F.S. or customized, its cable size is ⌀4x2000mm or customized length, and its IP Class is IP65 or it also could be customized.

0.1-20kN Stainless Steel Column Type Load Cell FA406 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA406 could be used to measure load 0.1kN, 0.2kN, 0.5kN, 1kN, 2kN, 5kN, 10kN and 20kN capacity, its Creep(30min), Non-linearity and Hysteresis all ≤0.1%F.S., its Repeatability ≤0.05%F.S., its weight is 0.3kg.

50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor FA410 is a model of Column Type Load Cell, it is designed to measure load ranges from 50kN up to 3000kN. The material Alloy Steel or Stainless Steel can be customized, its cable size is 5.4x6000mm, it supports IP67.

50,100,300,500kg Or Customized Spoke Type Load Cell FA129B is a model of our brand FIBOS FA1-Series, it belongs to FA129. Spoke Type Load Cell FA129B can be used to measure load 50kg,100kg,300kg and 500kg or customized capacity, its Creep(30min) and Non-linearity both ≤0.02%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.018%F.S. or can also be customized.
