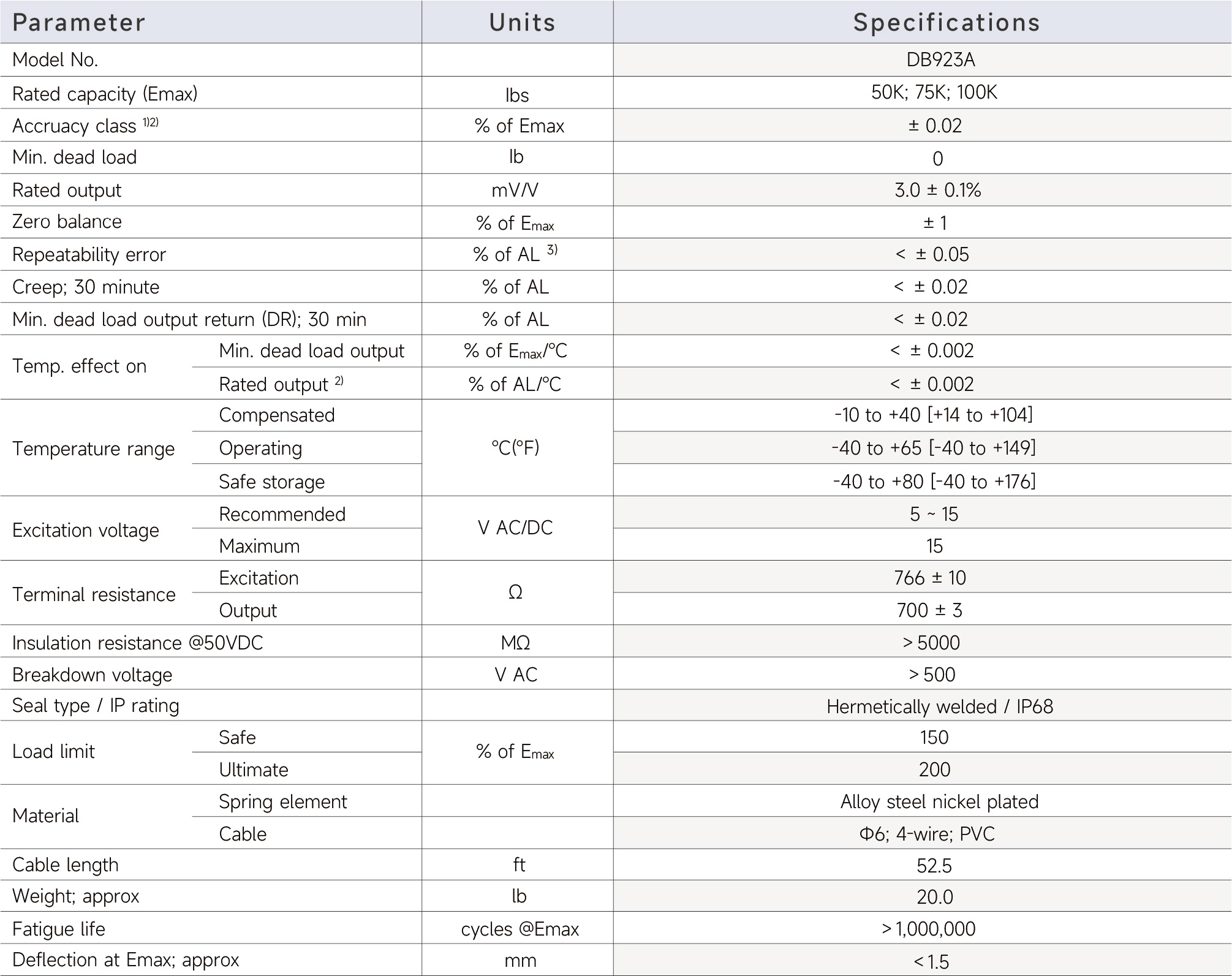

DB923A-50klb, DB923A-75klb, DB923A-100klb
Датчик нагрузки типа Double-Ended Shear Beam
Грузоподъемность: 50~100 klb
Материал: легированная сталь
Тип: Double-Ended Shear Beam
Степень защиты: IP68
Подходит для грузовых весов, больших бункерных весов и других электронных весовых систем
| Capacity | L | L1 | W | W1 | H | H1 | D | D1 | D2 | J | R1 | R2 |
| 50~100klb | 10.25 | 8.50 | 3.00 | 2.20 | 3.00 | 0.28 | 2.06 | 2.40 | 0.75 | 0.78 | 1.00 | 1.00 |
