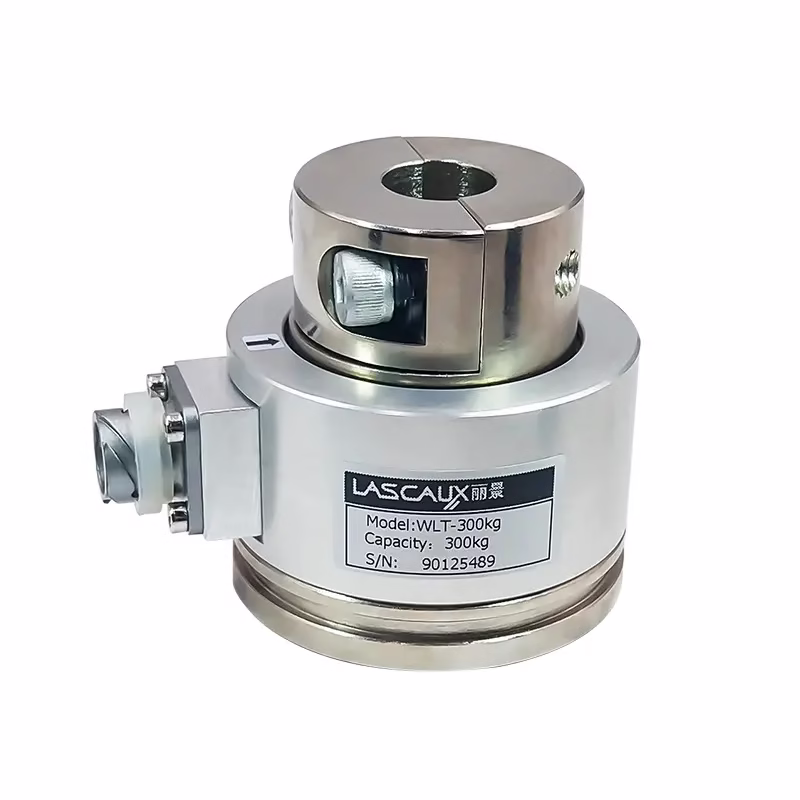

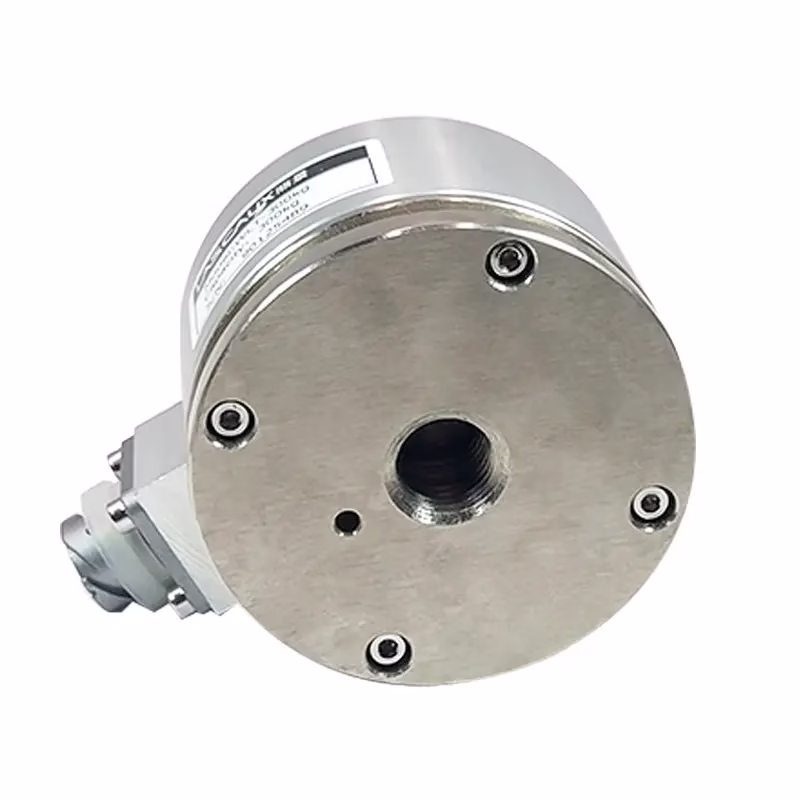

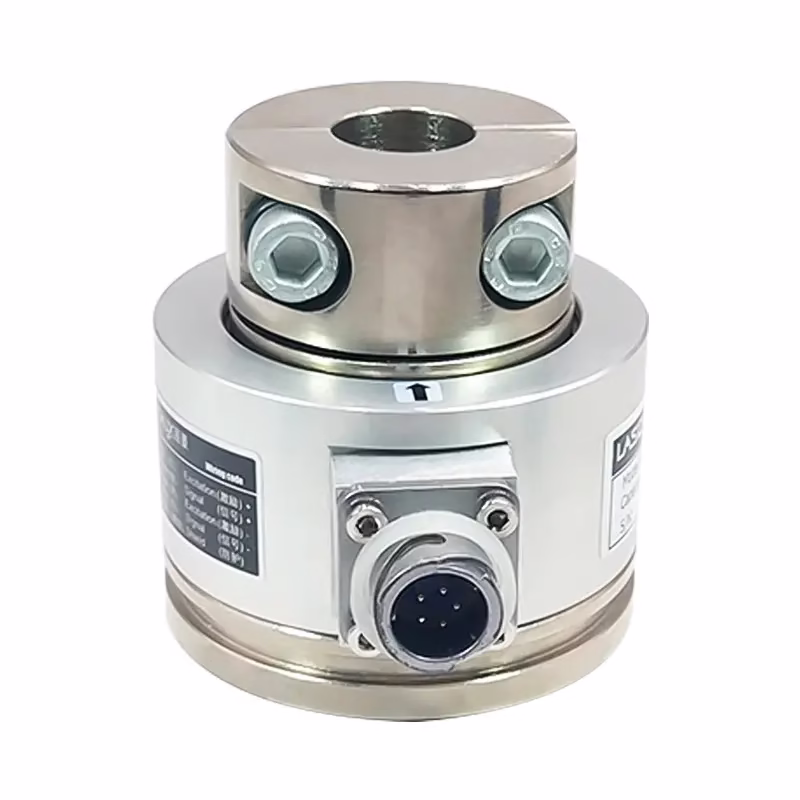

WLT Tension Sensor For Precise Measurement Of Plastic Film Or Tape Plastic Film Tape Tension Measurement
Features
1. Capacities (kg): 5 to 100
2. Resistance strain measurement methods
3. Degree of protection can reach to IP66
4. It can accurately measure in the low tension
5. Compact structure, save the space, easy to install
6. High comprehensive precision, high stability
7. High quality alloy steel with nickel plating
8. Stainless steel material is available
9. Many installations types can satisfy various needs
Applications
1. Textile machinery
2. Printing and packaging
3. Paper plastic
4. Wire and cable
5. Meet the tension testing needs of various industries

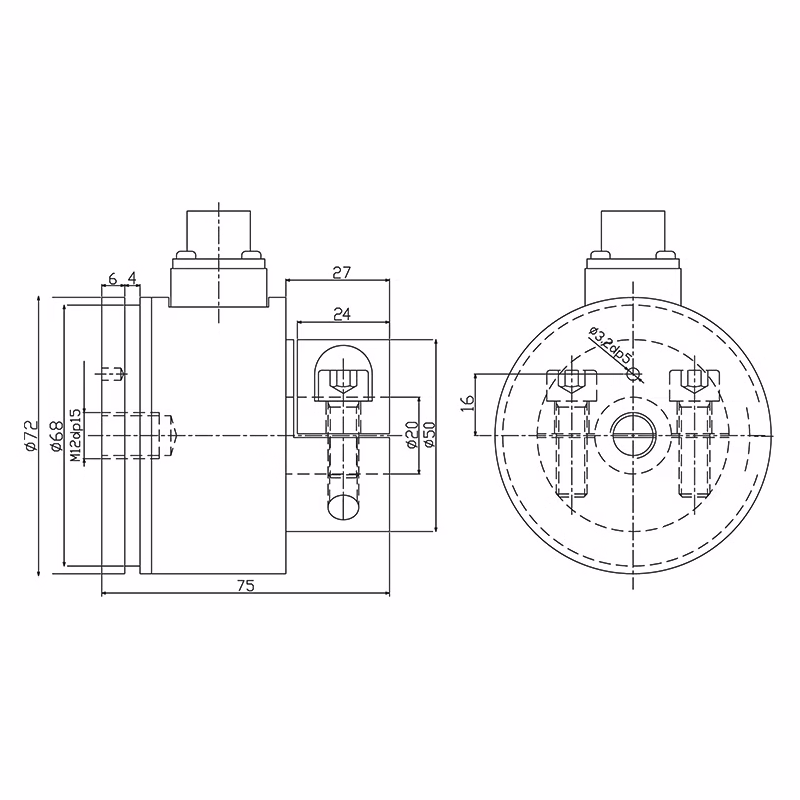

Dimensions
Specifications
Specifications: | ||
Rated Load | kg | 5,10,25,50,100 |
Rated Output | mV/V | 1 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.3 |
Compensated Temp.Range | ℃ | -10~+40 |
Operating Temp.Range | ℃ | -20~+70 |
Temp.effect/10℃ on output | %R.O./10℃ | ±0.01 |
Temp.effect/10℃ on zero | %R.O./10℃ | ±0.01 |
Recommended Excitation Voltage | VDC | 5-12/15(max) |
Input impedance | o | 380±10 |
Output impedance | O | 350±5 |
Insulation resistance | MO | =5000(50VDC) |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel or Aluminum | |
Degree of protection | IP66 | |
The length of the cable | m | 3 |
※ Product specifications are subject to change without notice.
