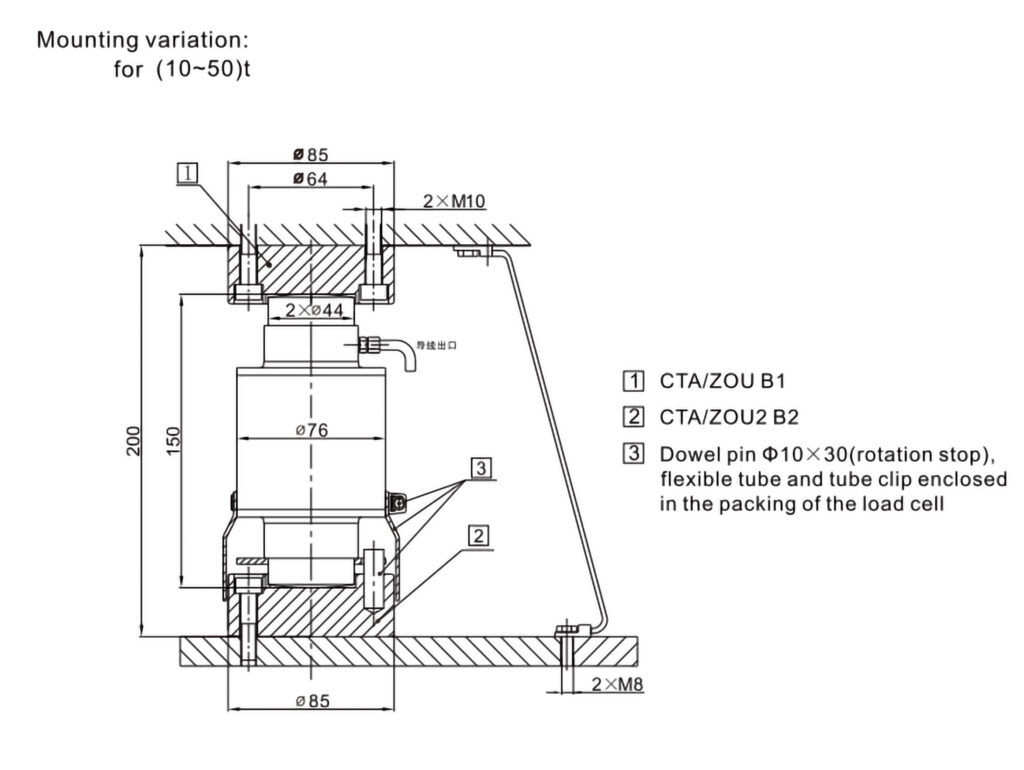

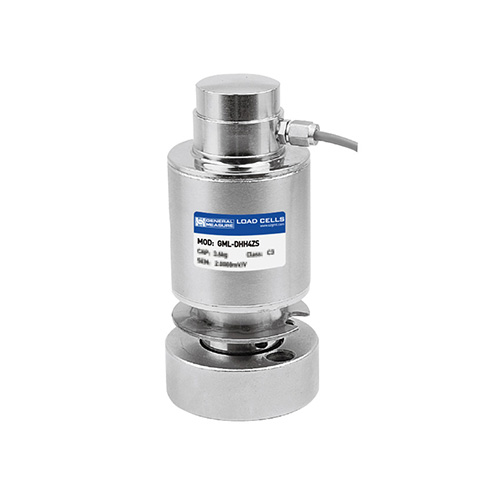

Серия GML-Z4 A компании General Measure — это канистрические тензометрические датчики с прочной и точной конструкцией, обеспечивающие точность класса C3. Доступны варианты из легированной или нержавеющей стали. Компактная конструкция облегчает установку. Поддерживает различные грузоподъёмности от 10 до 50 тонн, что делает его подходящим для взвешивания крупных масс. Обеспечивает точные измерения в промышленных условиях, предотвращая потерю сырья и снижая затраты.
GML-Z4 A-10t, GML-Z4 A-15t, GML-Z4 A-20t, GML-Z4 A-30t, GML-Z4 A-40t, GML-Z4 A-50t
Грузоподъёмность: 5~50 кг
Материал: Легированная сталь, нержавеющая сталь (опционально)
Тип: Канистрический
Степень защиты: IP68
Область применения:
— Напольные весы
— Грузовые весы
— Железнодорожные весы
— Взвешивание силосов и резервуаров
— Промышленные области, требующие точного измерения больших масс
