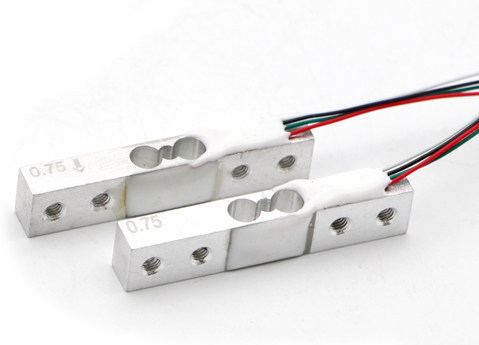

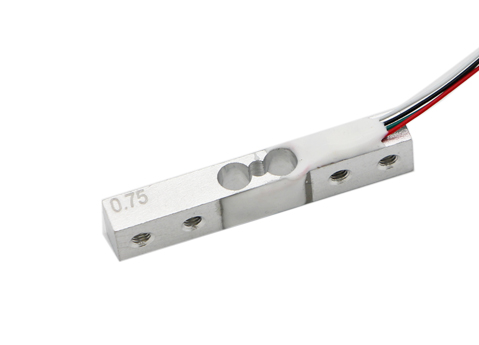

GML616 300g 500g 750g hand scales Micro load cell
| Specification: | |
| Rated load (g) | 300-750 |
| Comprehensive error (%FS) | 0.05 |
| Rated output (mV/V) | 0.7±0.15 |
| Dimensions (mm) | 45×9.3×6 |
| Cable (mm) | Φ0.6×110 |
Application:

Packaging:
1. Aluminum alloy
2. Suitable for kitchen scales, postal scales, and other micro electronic weighing systems.
GML616 300g 500g 750g hand scales Micro load cell
| Specification: | |
| Rated load (g) | 300-750 |
| Comprehensive error (%FS) | 0.05 |
| Rated output (mV/V) | 0.7±0.15 |
| Dimensions (mm) | 45×9.3×6 |
| Cable (mm) | Φ0.6×110 |
Application:

Packaging:
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
SC918은 체중계 및 저중량 계량 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC918은 최대 75kg의 고용량으로 설계되었지만, 50kg으로도 제공됩니다.
***SC918에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다***
The SC918 is a half-bridge micro load cell ideal for body scales and low profile weighing applications. The SC918 is intended for high capacity with a maximum of 75kg but it is also available in 50kg.
***Mounting assembly/module may be necessary as the SC918 has no mounting holes***
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LCT Single Point Load Cells/Miniature Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.These load cells are moment insensitive.
Model LAA-H1/H3 load cells are designed to this “single point/miniature”type and manufactured from high quality aluminum alloy of aviation standard. LAA-H1/H3 oad cells can be used to measure loads range from 150g to 750g with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-H1/H3 load cells are mainly used for pocket scales,kitchen scales,postage scales,portable scales,jewellery scales,small balances,other platform scales and coffee machine weighing systems.
SC135B는 SC135의 특수 변형 모델입니다. 동일한 로우 프로파일 바디를 사용하지만, 더 작은 설치 환경에 적합하도록 장착 지점이 다릅니다. 따라서 최대 20kg의 낮은 용량을 처리할 수 있습니다. 알루미늄으로 제작되었으며, 포팅 소재를 사용하여 환경 친화적입니다.
The SC135B is a special variant of the SC135 It shares the same low profile body but its mounting points are different to accommodate smaller setups. As such, it can handle lower capacities up to 20kg. It is constructed from aluminum and environmentally protected by potting material.
SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.
The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.
ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.
Features:
Both compression and tension
SC928NB는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC928NB는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편합니다. ***SC928NB에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다.***
The SC928NB is a half-bridge micro load cell ideal for body scales or low profile applications. The SC928NB is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has feet pre-installed to the load cell body to simplify installation.
***Mounting assembly/module may be necessary as the SC928NB has no mounting holes***
The ZMMC3 is through-hole force sensor which is available in a wide range of standard capacities from 50N through to 1000N. Zhimin offers custom solutions which help you design your unique load cell application. For wahser type load cell, we need to know your required diameter and through hole size. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Stainless steel construction
SC134는 체중계에 적합한 마이크로 로드셀입니다. 간편한 설치를 위해 풀 브리지 및 하프 브리지 구성으로 제공됩니다. SC134는 초박형으로 평평하거나 낮은 두께의 어플리케이션에 적합합니다. SC134의 중앙 구멍은 고객 요구에 따라 맞춤 제작 가능합니다.
The SC134 is a micro load cell ideal for body scales. It is available in Full Bridge and Half Bridge configuration for simplified installation. SC134 is ultra thin ideal for flat or low profile applications. The center hole of the SC134 can also be customized depending on customer needs.
SC132는 현재 출시된 마이크로 빔 전단 로드셀 중 가장 작은 제품입니다. 작은 크기에도 불구하고 2kg의 용량을 처리할 수 있다.
The SC132 is the smallest micro beam shear load cell available. Despite is small size, it can handle 2KG capacity which means that
ZMMA-YS is mini type force transducer, widely used on UTM and compression&tension force applications.
Features:
Both compression and tension
