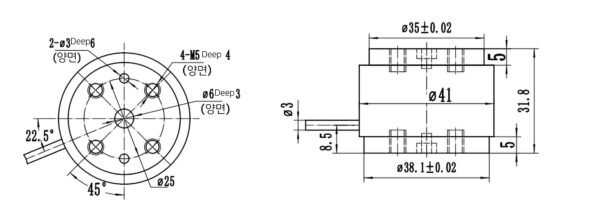

DAYSENSOR / DYJN-108 / Датчик крутящего момента

10,20,50,100,200,500t Or Customized Dynamic Torque Sensor Force Torque Sensor FA607A belongs to FA607 which is in Dynamic Torque Sensor Force Torque Sensor category of our brand FIBOS FA6-Series, Dynamic Torque Sensor Force Torque Sensor FA607 its Creep(30min),Non-linearity and Hysteresis all ≤0.15%F.S. or can be customized, its Repeatability ≤0.13%F.S. or customized.

1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、It is used for static discontinuous rotation, non-standard customization, anti-interference signal stability, and is widely used in static torque testing systems such as testing machines, torque wrenches, steering gears, electric actuators, valves, transmissions, and hydraulic pressure.
4、Small size, light weight and convenient installation and use.
5、 High detection accuracy, good stability and strong anti-interference ability.

For static, non-continuous torque measurement

Динамический датчик крутящего момента — это высокоточный измерительный прибор, способный измерять выходной крутящий момент и мощность вращающегося силового оборудования.
Он широко применяется для тестирования крутящего момента и мощности таких вращающихся силовых установок, как электродвигатели, двигатели внутреннего сгорания, а также для измерения крутящего момента и мощности механических компонентов, таких как вентиляторы, водяные насосы, коробки передач и динамометрические ключи.

1,2,3,5,10,20,30,50,100,200Nm Or Customized Dynamic Torque Sensor FA607B is a model of our brand FIBOS FA6-Series, FA607B belongs to FA607 which is from Torque Force Sensor, it can be used to measure Torque Force 1N.m, 2N.m, 3N.m, 5N.m, 10N.m, 20N.m, 30N.m, 50N.m, 100N.m, 200N.m or customized capacity, its Creep(30min) and Repeatability both same ≤0.1%F.S. or can be customized, its Non-linearity and Hysteresis both same ≤0.2%F.S. or also can be customized.

Suitable for dynamic, bearing, torque wrench and other testers

The ZHKY2050 is a compact non-contact type torque sensor ideal for low torque applications with maximum of only 5N·m. The ZHKY2050 can still handle up to 8000RPM so it is for systems that require high speed.

The ZMNJF2 is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJF2 can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm. The sensor is used in static and non-rotating torsion measure applications.

Nickel plated alloy steel

The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Compact size

0.5,1,2,3,5,10,20,30,50,100,200,300,500kN.m or customized Static Torque Sensor Force Torque Sensor FA625A belongs to FA625 which is in Static Torque Sensor of Force Torque Sensor category, FA625A can be used to measure Static Torque force 0.5kN.m,1kN.m,2kN.m,3kN.m,5kN.m,10kN.m,20kN.m,30kN.m,50kN.m,100kN.m,200kN.m,300kN.m and 500kN.m or customized capacity.

Динамический датчик крутящего момента — это высокоточный измерительный прибор, способный измерять выходной крутящий момент и мощность вращающегося силового оборудования.
Он широко применяется для тестирования крутящего момента и мощности таких вращающихся силовых установок, как электродвигатели, двигатели внутреннего сгорания, а также для измерения крутящего момента и мощности механических компонентов, таких как вентиляторы, водяные насосы, коробки передач и динамометрические ключи.
