Models
WB702CR-A-0.11t, WB702CR-A-0.22t, WB702CR-A-0.55t, WB702CR-A-1.1t, WB702CR-A-2.2t, WB702CR-A-3t, WB702CR-A-4.4t
WB702CR-B-0.25t, WB702CR-B-0.5t, WB702CR-B-1t, WB702CR-B-2t, WB702CR-B-3t, WB702CR-B-5t
WB702CR-C-0.11t, WB702CR-C-0.22t, WB702CR-C-0.55t, WB702CR-C-1.1t, WB702CR-C-2.2t, WB702CR-C-3t, WB702CR-C-4.4t
Features
– Вместимость: 0,11–4,4 т
– Материал: нержавеющая сталь
– Тип: Shear Beam
– Степень защиты: IP68
– Применение: подходит для платформенных весов, упаковочных весов, ленточных весов, бункерных весов и технологического контроля в химической, фармацевтической, пищевой, литиевой и других промышленных сферах

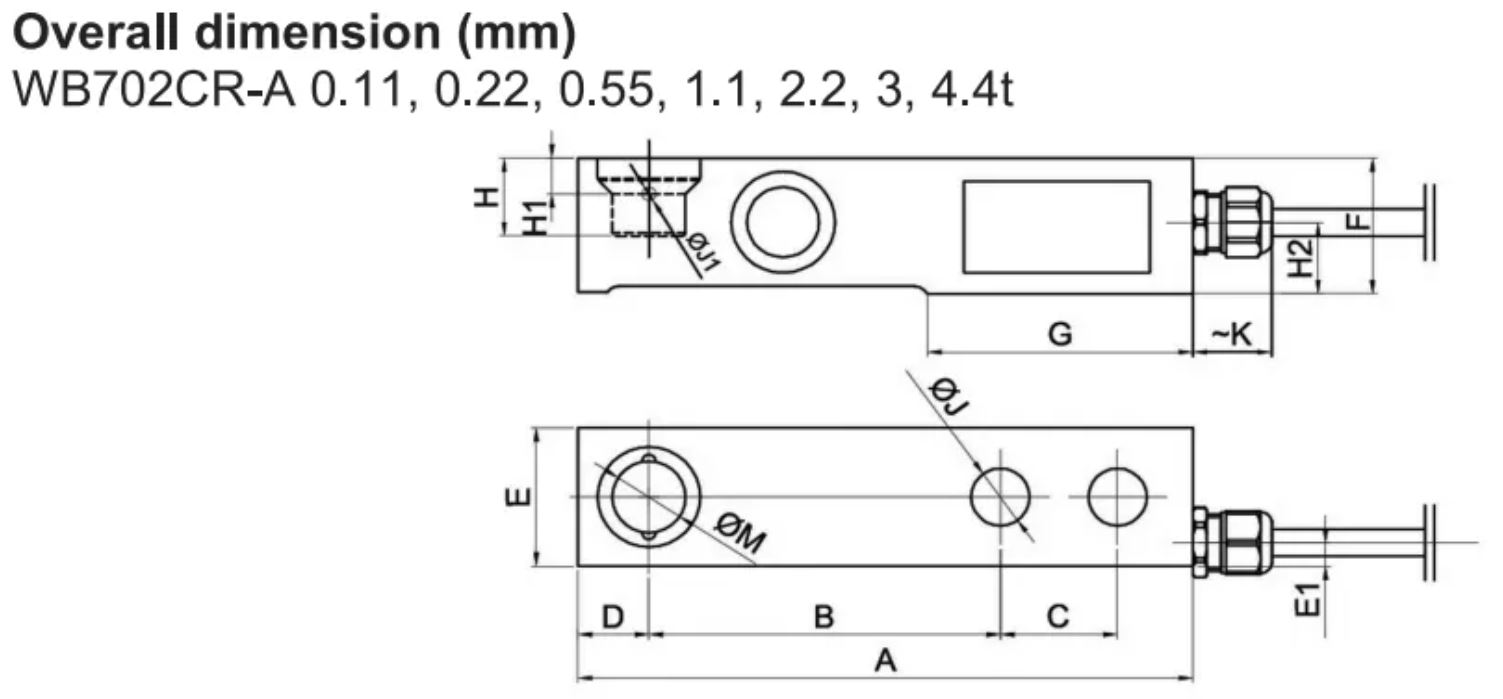

Dimensions
| Capacity(mm) | A | B | C | D | E | F | G | H | J | M | H1 | H2 | E1 | J1 | K |
| 0.11~1.1t | 133.4 | 76.2 | 25.4 | 15.4 | 30.2 | 57.7 | 57.7 | 17.3 | 13 | 15.9 | 7.9 | 16 | 8 | 3 | 20 |
| 2.2t | 136.6 | 76.2 | 25.4 | 18.3 | 36.6 | 57.9 | 57.9 | 22.9 | 13 | 15.9 | 12.7 | 19.8 | 8 | 3 | 20 |
| 3t | 139.7 | 79.2 | 25.4 | 18.4 | 36.6 | 57.9 | 57.9 | 22.9 | 15 | 15.9 | 12.7 | 19.8 | 8 | 3 | 20 |
| 4.4t | 171.5 | 95.2 | 38.1 | 21.5 | 42.9 | 73.8 | 73.8 | 29.3 | 19.3 | 22.2 | 17.4 | 22.7 | 8 | 3 | 20 |

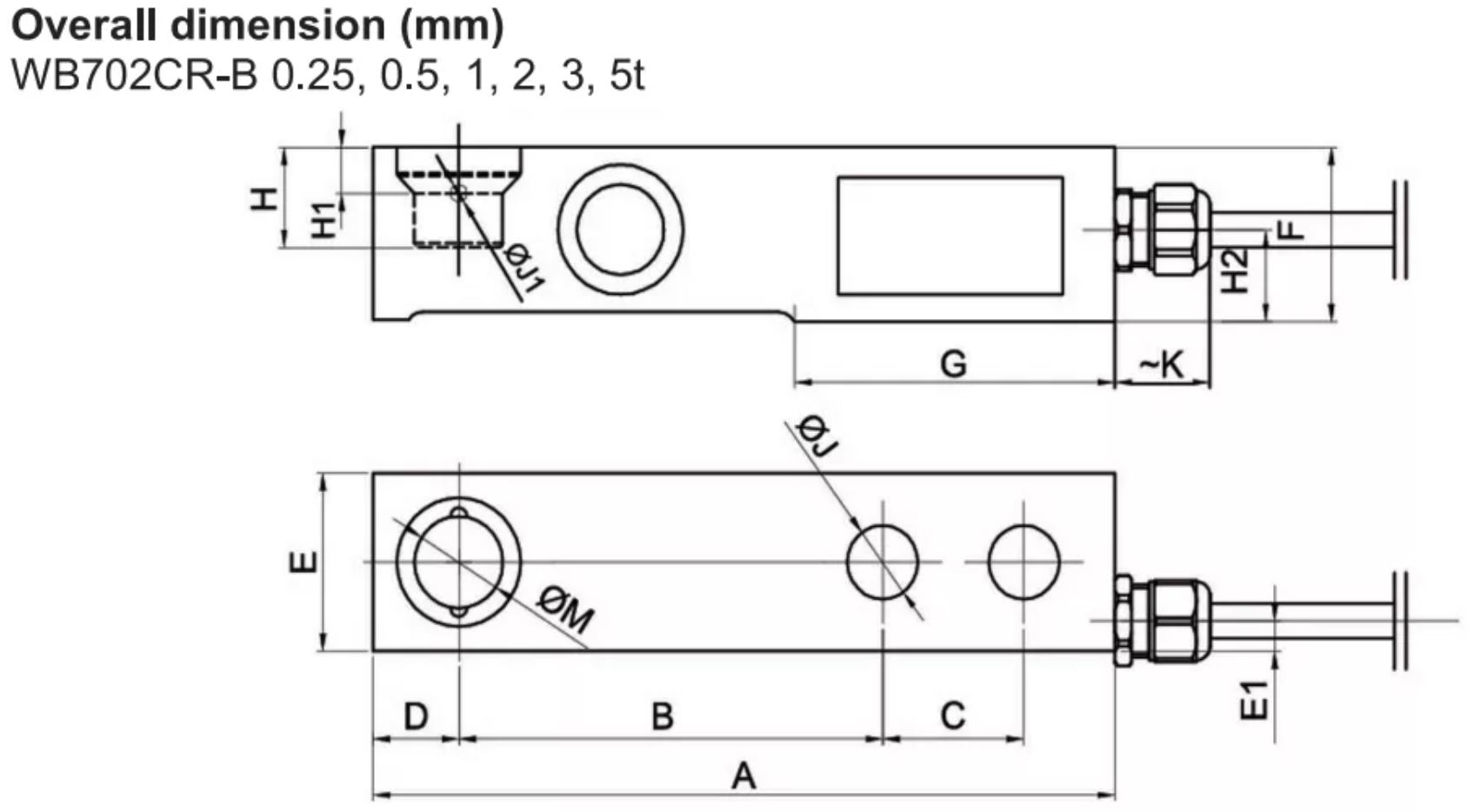

| Capacity(mm) | A | B | C | D | E | F | G | H | J | M | H1 | H2 | E1 | J1 | K |
| 0.25~1t | 133.4 | 76.2 | 25.4 | 15.4 | 30.2 | 57.7 | 57.7 | 17.3 | 13 | 15.9 | 7.9 | 16 | 8 | 3 | 20 |
| 2t | 136.6 | 76.2 | 25.4 | 18.3 | 36.6 | 57.9 | 57.9 | 22.9 | 13 | 15.9 | 12.7 | 19.8 | 8 | 3 | 20 |
| 3t | 139.7 | 79.2 | 25.4 | 18.4 | 36.6 | 57.9 | 57.9 | 22.9 | 15 | 15.9 | 12.7 | 19.8 | 8 | 3 | 20 |
| 5t | 171.5 | 95.2 | 38.1 | 21.5 | 42.9 | 73.8 | 73.8 | 29.3 | 19.3 | 22.2 | 17.4 | 22.7 | 8 | 3 | 20 |

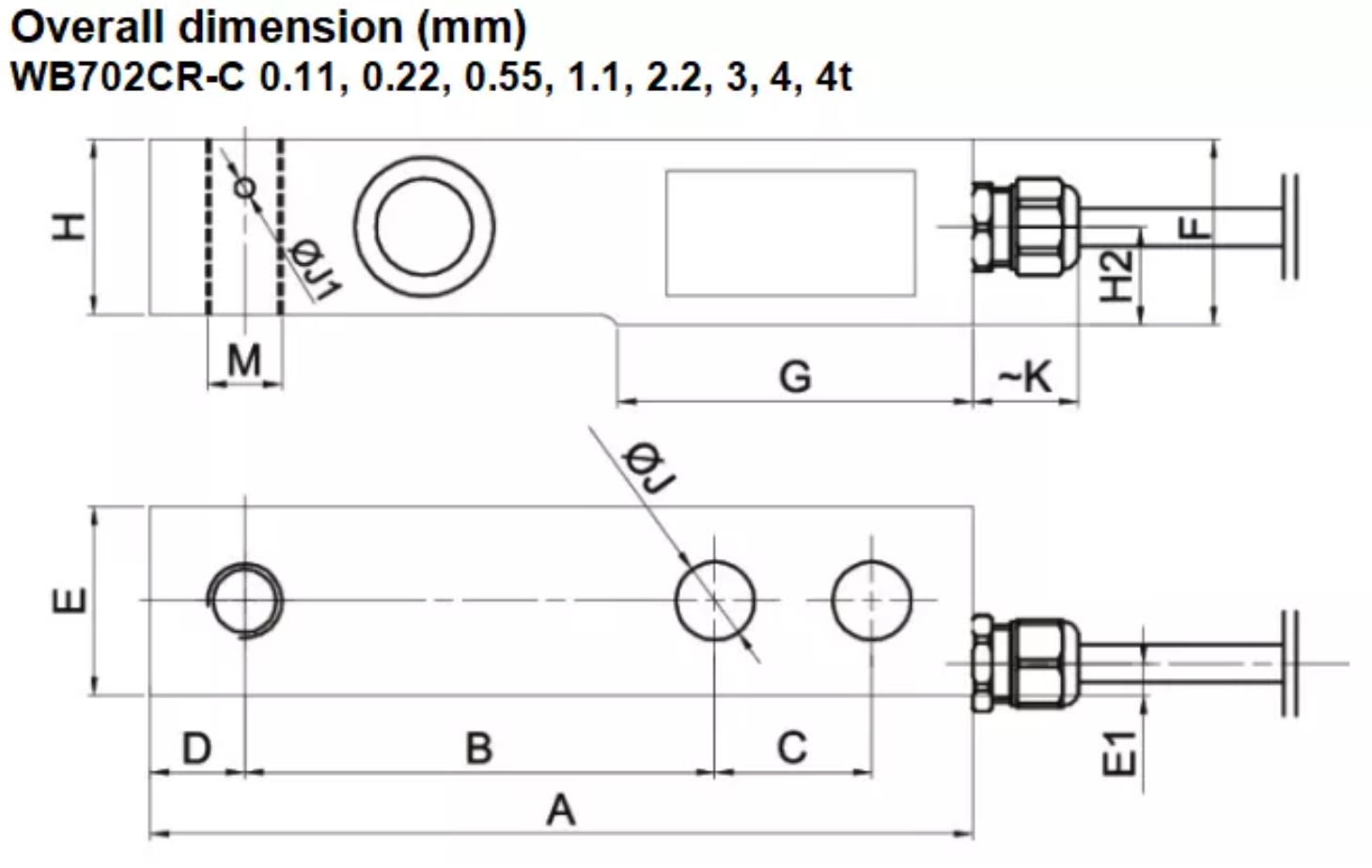

| Capacity(mm) | A | B | C | D | E | F | G | H | J | M | H2 | E1 | J1 | K |
| 0.11~1.1t | 133.4 | 76.2 | 25.4 | 15.4 | 30.2 | 57.7 | 57.7 | 28.4 | 13 | M12 | 16 | 8 | 3 | 20 |
| 2.2t | 136.6 | 76.2 | 25.4 | 18.3 | 36.6 | 57.9 | 57.9 | 33.6 | 13 | M12 | 19.8 | 8 | 3 | 20 |
| 3t | 139.7 | 79.2 | 25.4 | 18.4 | 36.6 | 57.9 | 57.9 | 33.6 | 15 | M20 | 19.8 | 8 | 3 | 20 |
| 4.4t | 171.5 | 95.2 | 38.1 | 21.5 | 42.9 | 73.8 | 73.8 | 40.4 | 19.3 | M20 | 22.7 | 8 | 3 | 20 |

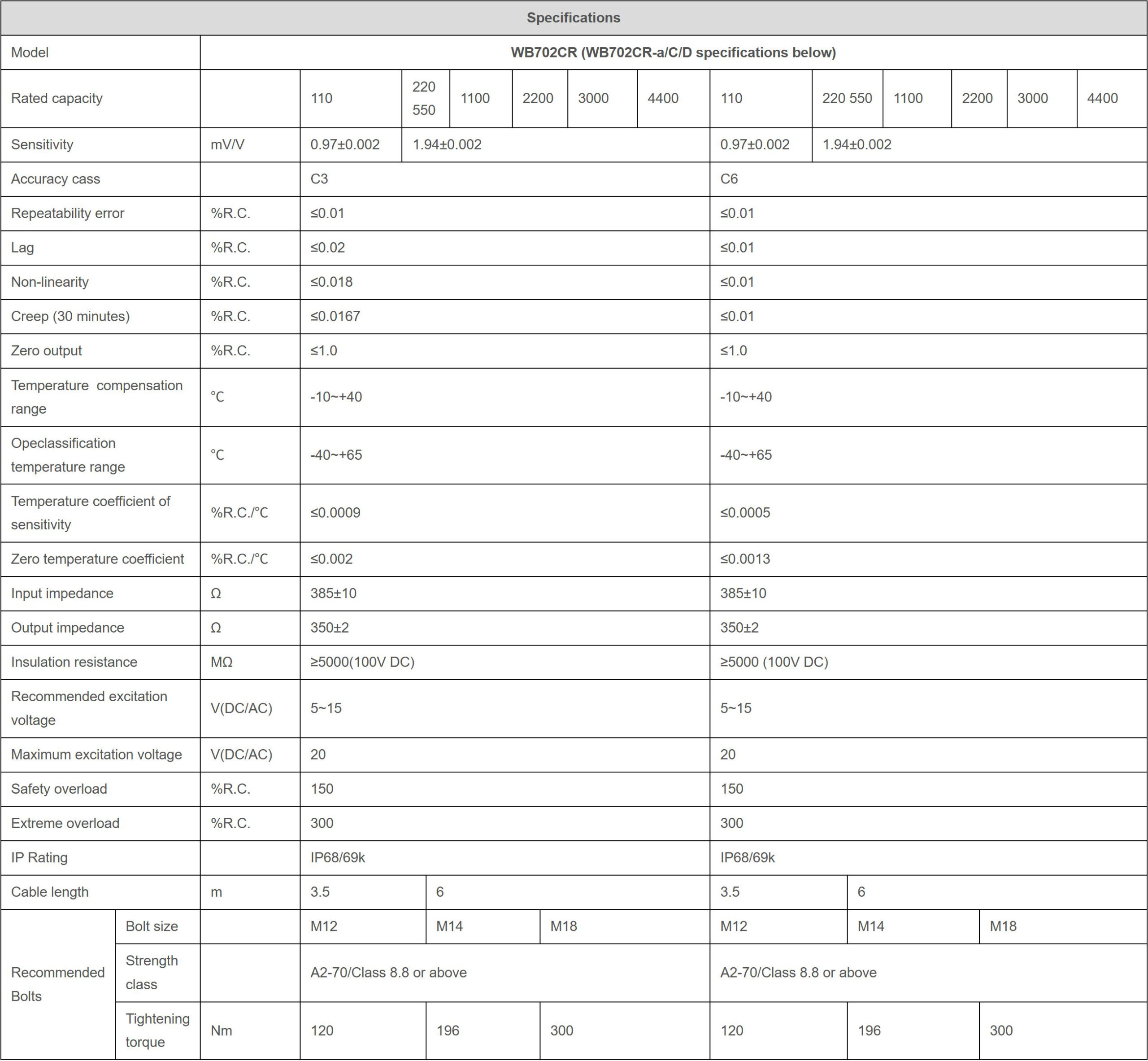

Specifications
