RUNNING TEC·H / R510S / Датчик сжатия

– Capacity: 1, 2.5, 5, 10, 15, 20, 30, 50, 100 t
– Material: Stainless steel
– Type: Compression
– Protection class: IP68/IP69K
– Applications: Suitable for process weighing in hopper scales, silo scales, and tank scales

Add to Wishlist
Share it:

Models

R510S-1t, R510S-2.5t, R510S-5t, R510S-10t, R510S-15t, R510S-20t, R510S-30t, R510S-50t, R510S-100t

Features

– Capacity: 1, 2, 5, 10, 20, 30, 50, 75, 100 t
– Material: Stainless steel
– Type: Compression
– Protection class: IP68/IP69K
– Applications: Suitable for process weighing in hopper scales, silo scales, and tank scales

Dimensions



Capacity D D1 D2 H H1 M
1~10t 82 22 65 44 32 M6*1.0
15~20t 100 28 80 48.5 35 M8*1.25
30t 126 35 – 54 40 –
50~100t 165 60 – 80 60 –

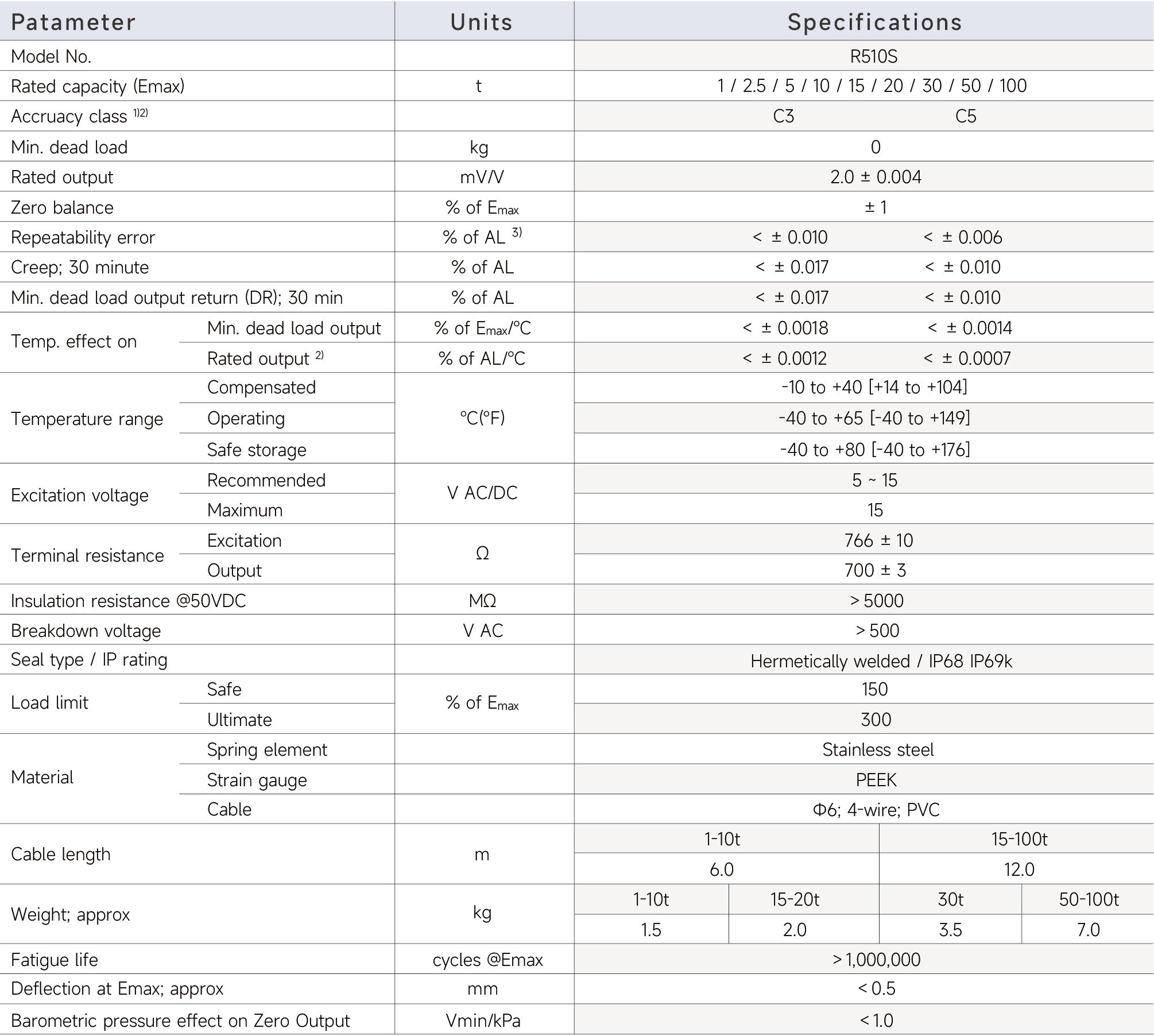

Specifications
