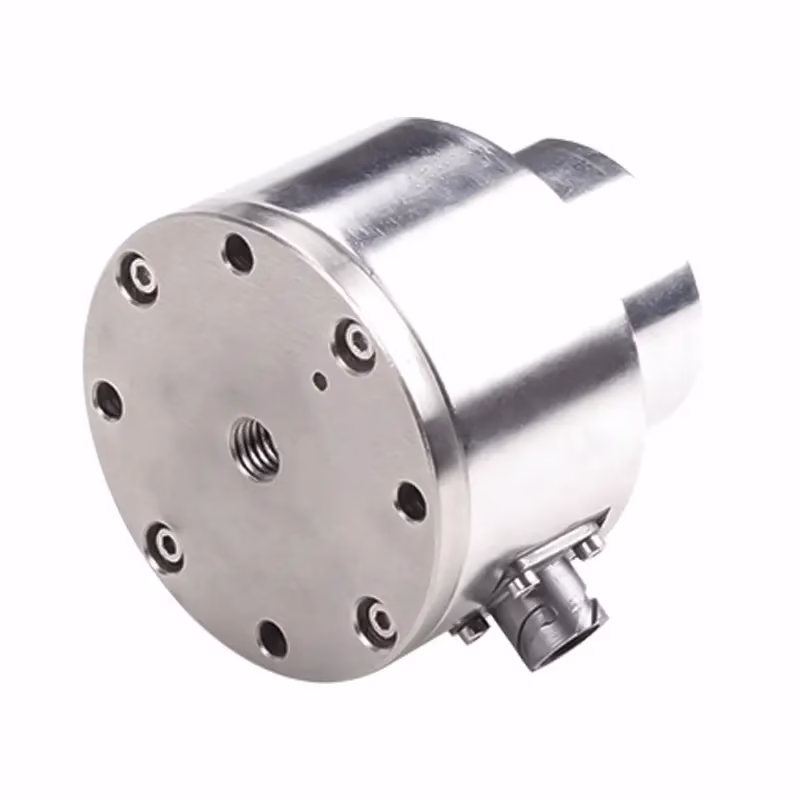

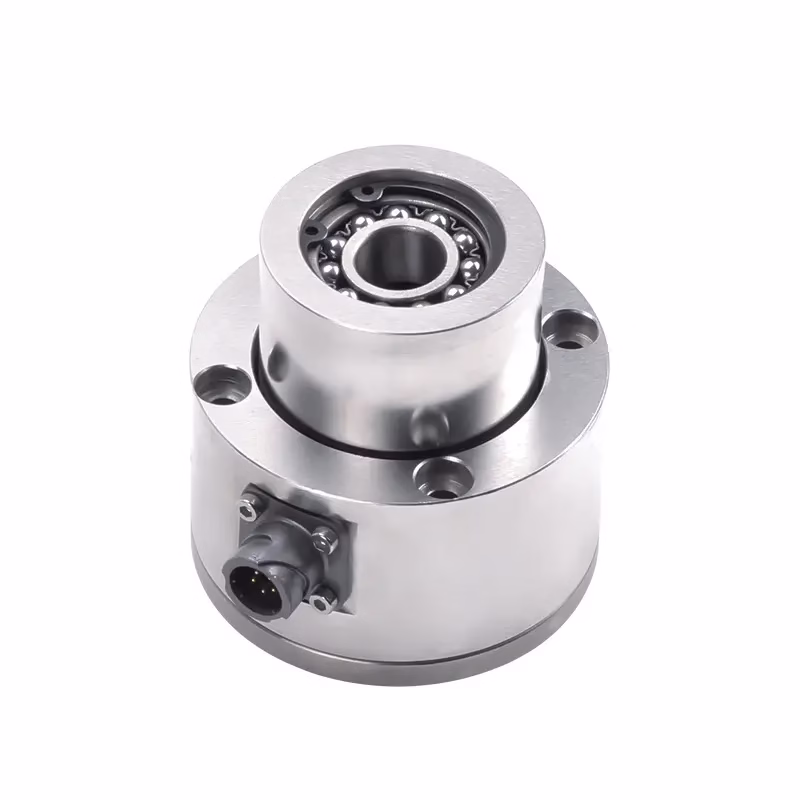

HLT Tension Sensor Online Precise Measurement Tension Detector
Features
1. Capacities (kg): 10 to 100
2. Resistance strain measurement method
3. The level of water-proof reaches IP65
4. Internally generated calibration signal
5. Compact structure, easy to install
6. High comprehensive precision, high stability
7. High quality alloy steel with nickel plating
8. Stainless steel material is available
Applications
1. Measurement of tension during winding and unwinding
2. Plastic, textile, packaging and other industries
Dimensions
Specifications
Specifications: | ||
Rated Load | kg | 10,25,50,100 |
Rated Output | mV/V | 1±0.1% |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.3 |
Compensated Temp.Range | ℃ | -10~+40 |
Operating Temp.Range | ℃ | -20~+70 |
Temp.effect/10℃ on output | %R.O./10℃ | ±0.3 |
Temp.effect/10℃ on zero | %R.O./10℃ | ±0.3 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 5 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±5 |
Insulation resistance | MΩ | =5000(50VDC) |
Safe Overload | %R.C. | 50 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel | |
Degree of protection | IP65 | |
The length of the cable | m | 3m |
Wiring code | Ex: | Red:+Black:- |
Sig: | Green:+White:- |
