Models

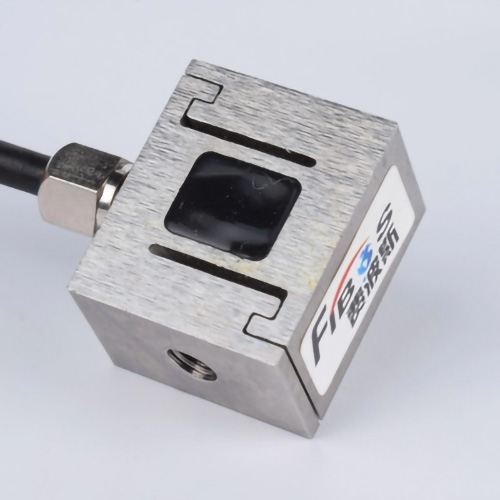

FA302B
Features
| Product Name | S Beam Load Cell | Capacity | 5,10,20,50,100,200,500,1000,2000,5000N Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.03%F.S. Or Customized | Non-linearity | ≤0.05%F.S. Or Customized |
| Hysteresis | ≤0.03%F.S. Or Customized | Repeatability | ≤0.03%F.S. Or Customized |
Dimensions
맞춤제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product Name | – | S Beam Load Cell |
| Capacity | N | 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000 or customized |
| Rated Output | mV/V | 2.0 ±10% |
| Zero Balance | mV/V | ±0.02 |
| Creep (30min) | %F.S. | ≤0.03 or customized |
| Non-linearity | %F.S. | ≤0.05 or customized |
| Hysteresis | %F.S. | ≤0.03 or customized |
| Repeatability | %F.S. | ≤0.03 or customized |
| Input Impedance | Ω | 650/350 ±5 |
| Output Impedance | Ω | 650/350 ±5 |
| Temp. Effect on Output | %F.S./10℃ | 0.05 |
| Temp. Effect on Zero | %F.S./10℃ | 0.05 |
| Insulation Resistance | MΩ/100V(DC) | ≥5000 |
| Recommended Excitation | V | 5 |
| Maximum Excitation | V | 15 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -20 ~ 80 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | mm | ⌀2 × 3000 or customized |
| Weight | kg | 0.1 or customized |
| Material | – | Stainless Steel or customized |
