Models
DYN-204-0.1N·m, DYN-204-0.2N·m, DYN-204-0.3N·m, DYN-204-0.5N·m, DYN-204-1N·m, DYN-204-2N·m, DYN-204-3N·m, DYN-204-5N·m
Features
·Still torque can be measured, with the rotational torque
·High accuracy, stable and reliable performance
·It can run for a high speed and for a long time
·Output a positive-reverse torque signal
·Both ends are key connections
·Maximum speed not exceeding 3,000 rpm

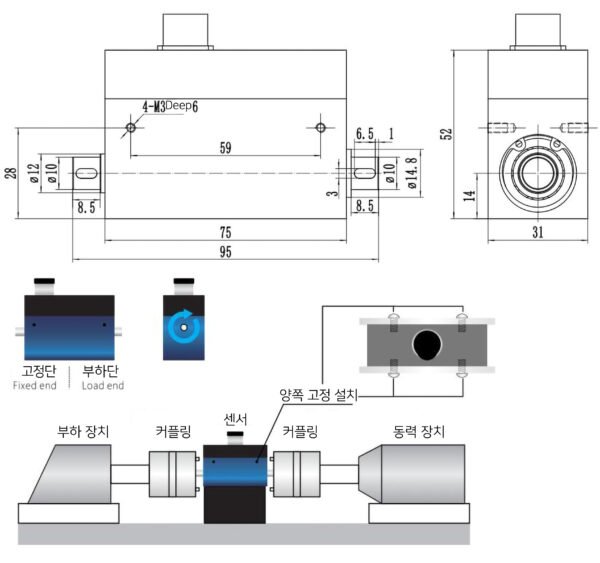

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Measuring Range | N·m | 0–5 |
| Speed Range | RPM | ≤3000 |
| Zero Output | %F.S. | ±0.5 |
| Non-linearity | %F.S. | 0.1 |
| Hysteresis | %F.S. | 0.5 |
| Repeatability | %F.S. | 0.05 |
| Creep (30 minutes) | %F.S. | 0.05 |
| Temperature Sensitivity Drift | %F.S./10℃ | 0.05 |
| Zero Temperature Drift | %F.S./10℃ | 0.05 |
| Response Time (50% Response) | ms | 1.0 |
| Response Frequency | kHz | 1 |
| Maximum Torsion Angle | rad (°) | 2.60×10 rad (0.149°) |
| Moment of Inertia | kg·cm² | 0.38 |
| Rotor Natural Vibration Freq. | kHz | 19.4 |
| Torsional Constant | Nm/rad | 3.85×10 |
| Material | — | Stainless Steel |
| Annual Stability | %/year | 0.3% |
| Operating Voltage | V DC | 5–15 |
| Power Consumption | mA | <150 |
| Operating Temperature | ℃ / RH | -10 to 50℃ / 0–85% RH |
| Safe Overload | — | 150% |
| Cable Specification | — | φ5×3m |
| Cable Max Tensile Force | kg | 10 |
