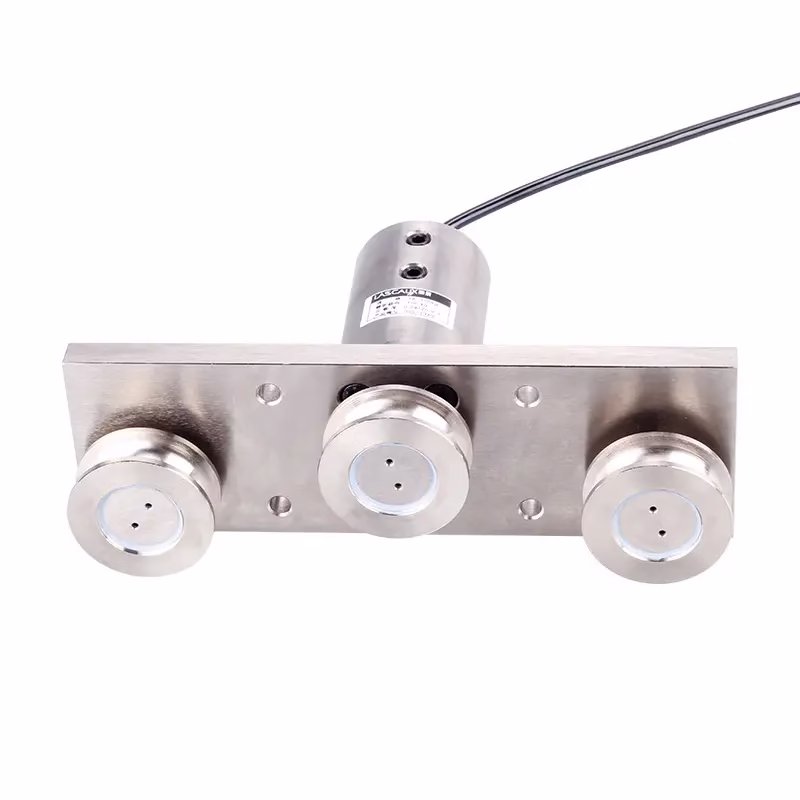

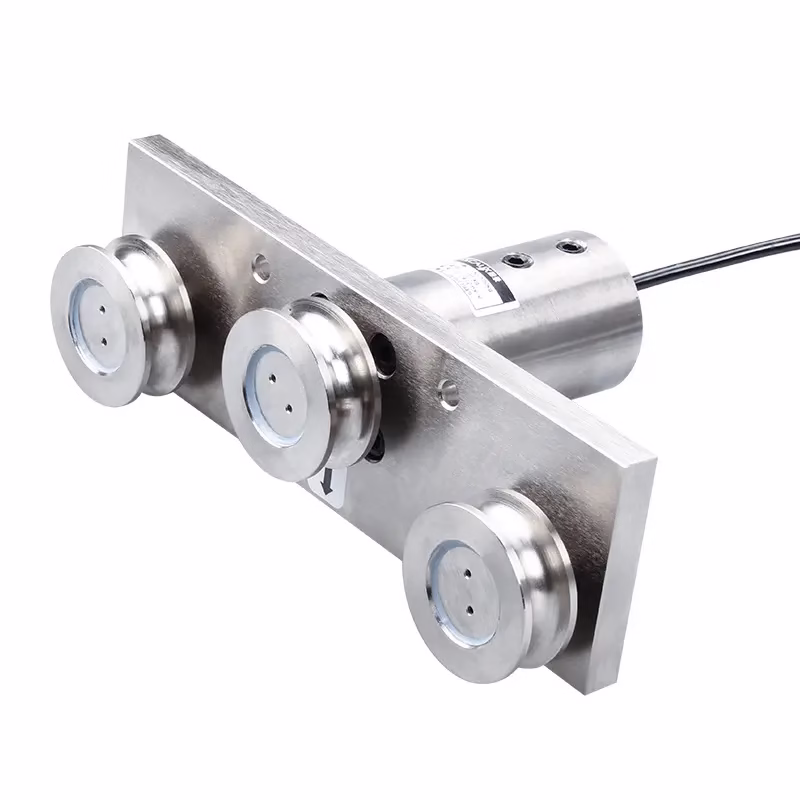

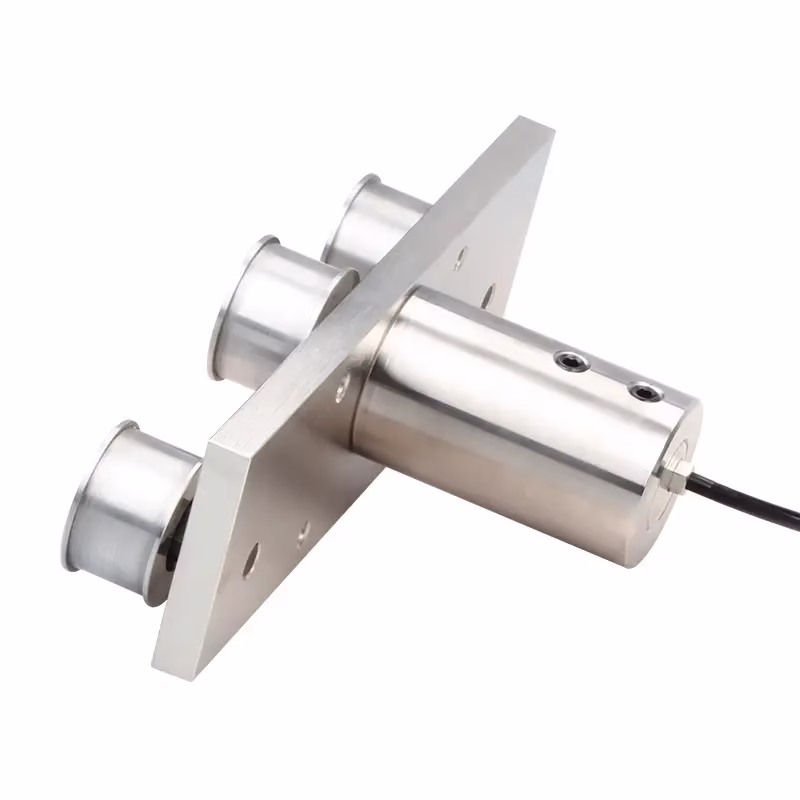

TK Three-Roller Online Precise Measurement Tension Sensor Tension Detector
Features
1. Capacities (kg): 100 to 1000
2. Resistance strain measurement methods
3. Compact structure, durable in use, easy to install
4. High comprehensive precision, high stability
5. High quality alloy steel with nickel plating
6. Roller is made of Alloy Steel
7. Be matched with amplifiers, 0-10v or 4-20mA are available
8. On-line tension measurement accurately
Applications:
1. On-line rope tension measurement
2. On-line continuous tension measurement of fibers, wires, metal wires and other products

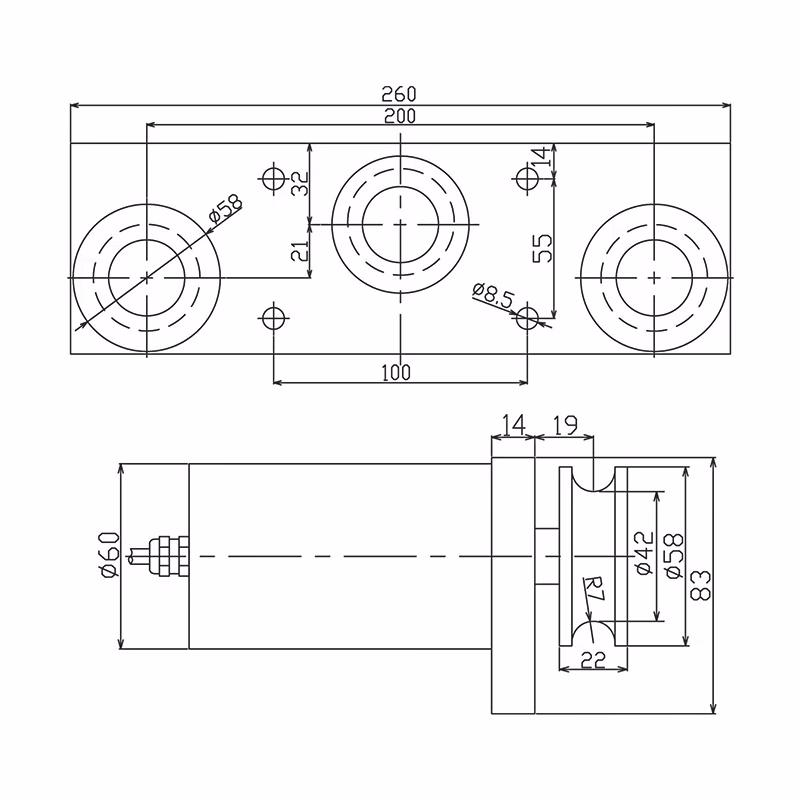

Dimensions
Specifications
Specifications: | ||
Rated Load | kg | 100,200,300,500,1000 |
Rated Output | mV/V | 1.5 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.3 |
Compensated Temp.Range | ℃ | -10~+40 |
Operating Temp.Range | ℃ | -20~+70 |
Temp.effect/10℃ on output | %R.O./10℃ | ±0.05 |
Temp.effect/10℃ on zero | %R.O./10℃ | ±0.05 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 5 |
Output impedance | Ω | 350±5 |
Input impedance | Ω | 380±10 |
Insulation resistance | MΩ | =5000(50VDC) |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel | |
Degree of protection | IP65 | |
The length of the cable | m | 3m |
※ 제품 사양은 예고 없이 변경될 수 있습니다.
