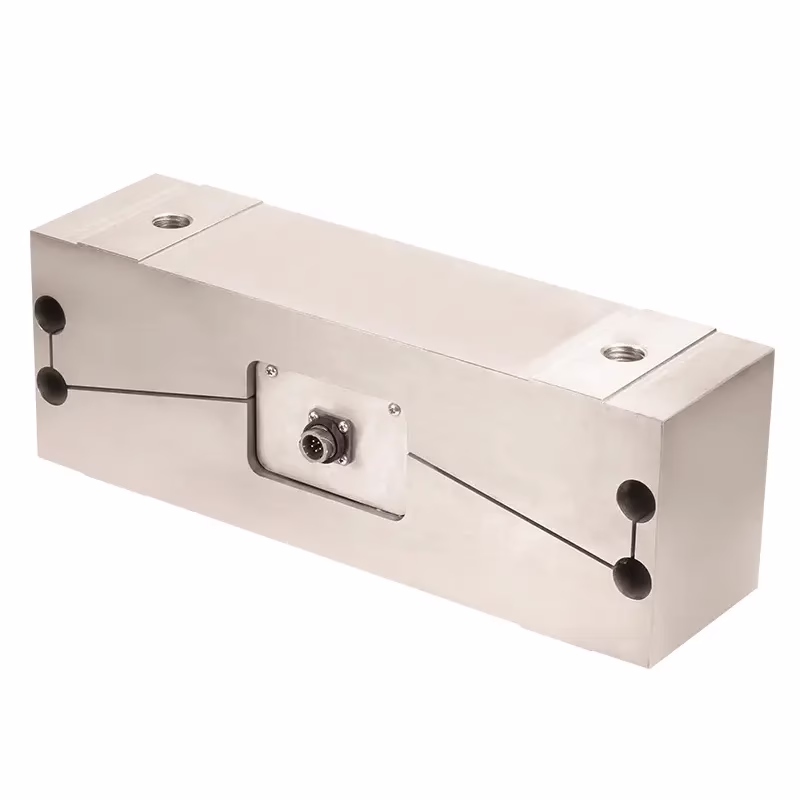

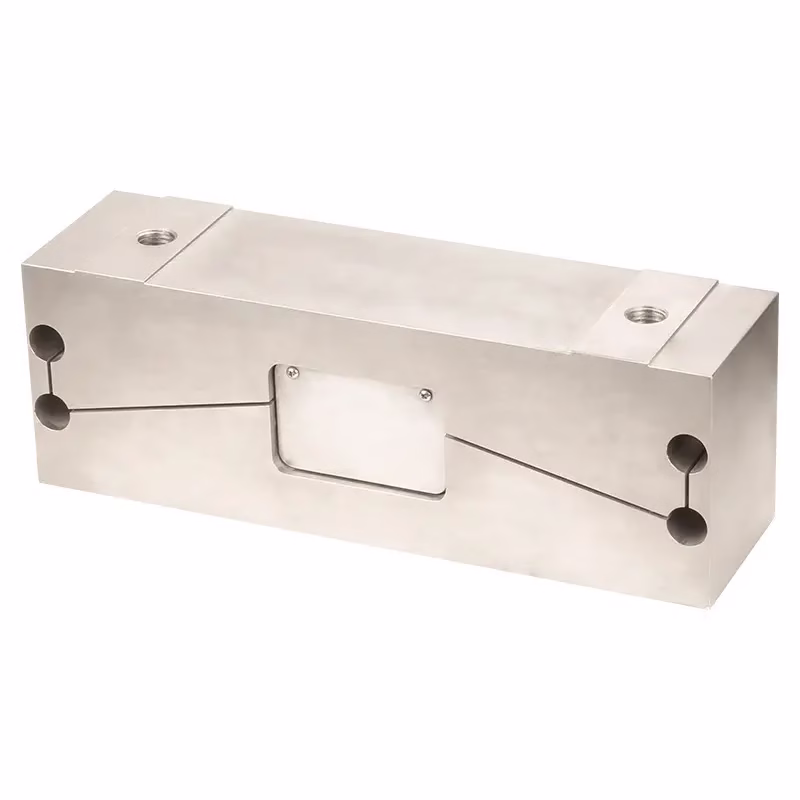

HPB Lower Pillow Tension Sensor Horizontal Tension Measurement
Features
1. Capacities (kg): 200 to 2000
2. Resistance strain measurement methods
3. The level of water-proof reaches IP65, hermetically seal structure
4. Compact structure, durable in use, high stability
5. High quality alloy steel with nickel plating, anti-corrosion strongly
6. It can measure the horizontal tension
Applications:
1. Printing, compounding, coating
2. Shearing, paper making, textile
3. Wires, cables, rubber
4. Equipment and production line that need to control coil tension

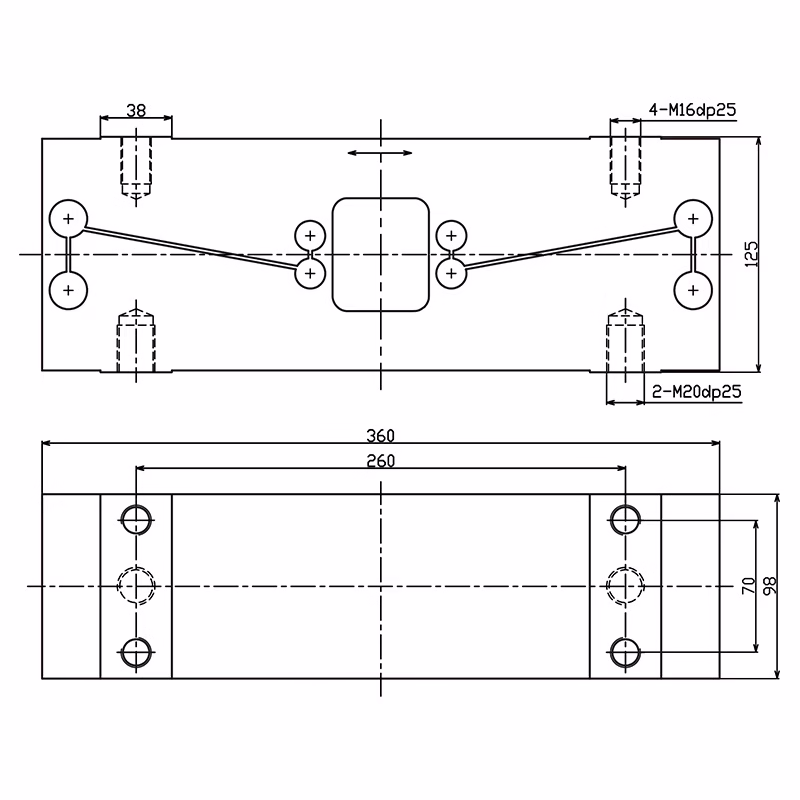

Dimensions
Specifications
Specifications: | ||
Rated Load | kg | 200,500,1000,2000 |
Rated Output | mV/V | 1 ± 0.1% |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.3 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.1 |
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.1 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±5 |
Insulation resistance | MΩ | ≥5000（50VDC） |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel | |
Degree of protection | IP65 | |
The length of the cable | m | 3m |
Wiring code | Ex: | Red：＋ Black：– |
Sig: | Green：＋ White：– |
