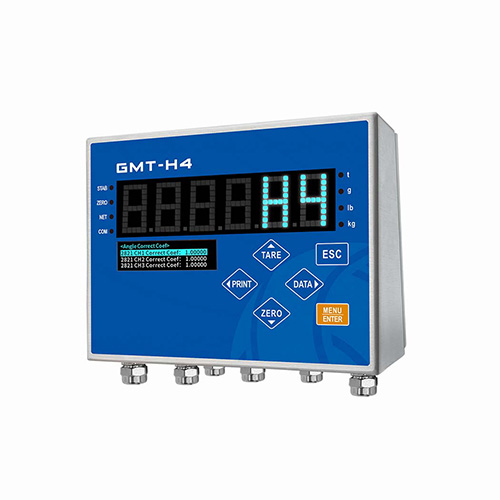

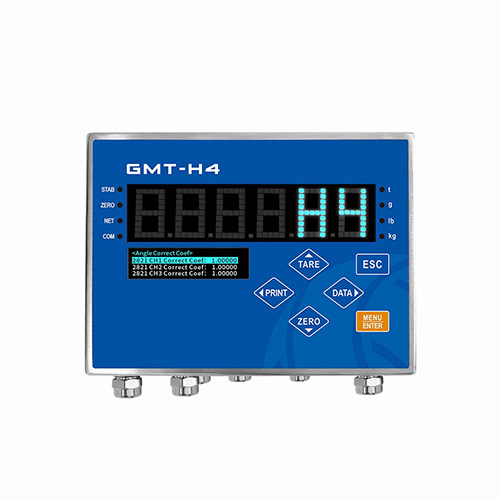

General Measure / GMT-H4 / Индикатор

6 Digits Scale LED Display Weight Digital Weighing Electric Weight Indicator
Optional 2/3/4-way relay or OC output, relay contact AC 250V/1A, OC output drive 100mA/48V
Output 4-20mA, 0-20mA, 0-5V, 0-10V, 12bit
accuracy, drive load ≤ 500 ohms. 485 communication port can execute ModbusRTU protocol or active upload protocol (transmission communication can only choose one)
Ambient temperature: -20 ~ 50 ° C; relative humidity: ≤ 85% RH; avoid strong corrosive gases.
AC 100 ~ 240V, 50 ~ 60HZ; power consumption ≤ 5W
Panel/cabinet, high quality plastic case
Small size: outer dimensions 96×48 deep 84mm, opening size: 92*45mm
Big size: outer dimensions 160*80*125mm, opening size: 152*72mm

Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing

Features

* Compatible with all functions of model XK3190-A9+
* High precision A/D conversion with readability 1/30000
* Non-linearity correction, calibration tolerance correction
* Auto change division among 3 different weighing ranges set up by user
* Password management and time power off function
* Set up print function for auto/manual, no condition/ under condition, daily/ stored statistics report printing

* Standard RS232 communication interface with selectable baud rate and communication method (RS422/RS485 optional)
* Standard scoreboard interface with current loop(20mA)method and standard parallel printer interface
* Able to print any parameter of indicator for saving and referring.

* Hardware detection and voltage of load cell output displaying function
