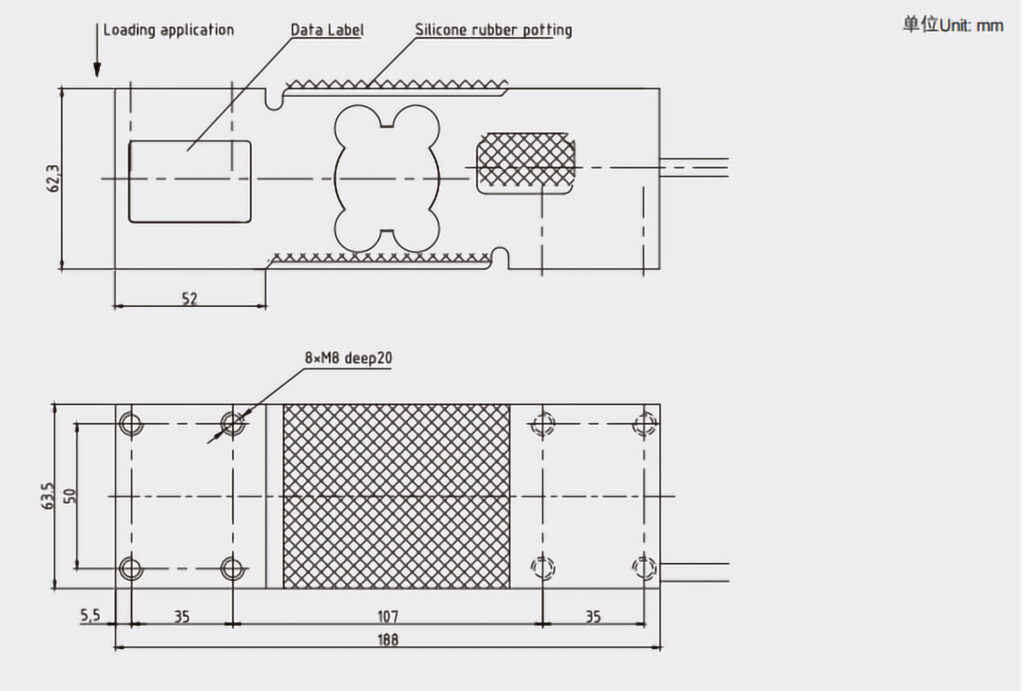

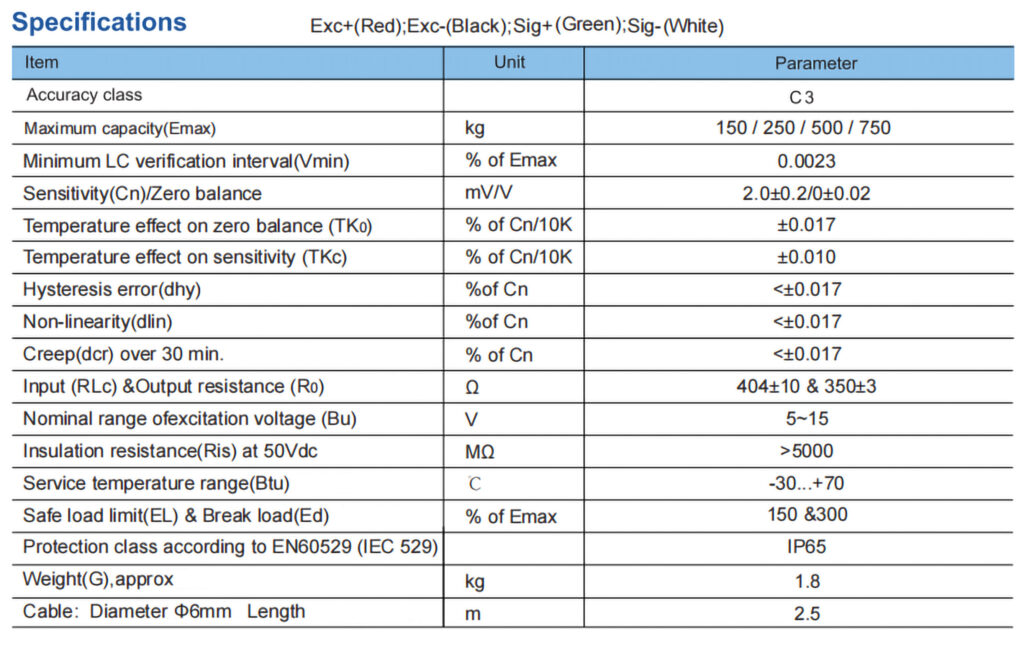

Серия GML-D6 1260 компании General Measure — это прочные и точно сконструированные сингл-пойнт тензометрические датчики с точностью класса C3. Изготовлены из легированной стали, имеют защиту IP65, что делает их подходящими для промышленного применения. Поддерживают грузоподъёмность от 150 до 750 кг. Компактный дизайн удовлетворяет минимальные требования по высоте установки и облегчает монтаж.
GML-D6 1260-150kg, GML-D6 1260-250kg, GML-D6 1260-500kg, GML-D6 1260-750kg
Грузоподъёмность: 150~750 кг
Материал: Легированная сталь
Тип: Single Point
Степень защиты: IP65
Область применения:
– Промышленные платформенные весы
– Ленточные весы
– Средние и малые системы точного взвешивания с низкой монтажной высотой
500,1000,2000,5000,10000N Or Customized Column Type Load Cell FA402B is a model of Column Type Load Cell, it belongs to FA402 in our brand FIBOS FA4-Series, FA402B could measure load 500N, 1000N, 2000N, 5000N and 10000N or customized Capacity, its Creep(30min), Non-linearity, Hysteresis, Repeatability all ≤0.05%F.S. or could be customized, its weight is 0.1kg or customized.
This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.
50,100,150,200t or customized Spoke Type Load Cell FA120F is a model of our brand FIBOS FA1-Series, it belongs to FA120 which belongs to Spoke Type Load Cell category. FA120F can be used to measure load 50t,100t,150t and 200t or customized capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.08%F.S. or can be customized, and its Repeatability ≤0.09%F.S. or also can be customized.
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.
50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell FA120A is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120A can be used to measure load 50kg,100kg,200kg,500kg and 1t capacity, its Creep(30min) and Repeatability both ≤0.03%F.S., and its Non-linearity and Hysteresis both ≤0.05%F.S..
This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.
5000N Or Customized Column Type Load Cell FA462 is a model of Column Type Load Cell, it can measure load 5000N or customized capacity, its Non-linearity and Repeatability are same 0.01%F.S. or customized, we could use Alloy Steel or other customized metallic material as its material.
50kN Or Customized Capacity 0.02%F.S. Or Customized Precision Column Type Load Cell FA120M is a model of Column Type Load Cell, it is designed to measure loads in compression with the 50kN or customized lighter or heavier capacity, it could be used stainless steel or others as its material, its non-linearity is 0.02%F.S. or customized.
10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.
50-70t Spoke Type Load Cell FA120C is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120C can be used to measure load 50t and 70t capacity, its Zero Balance range is ±1%F.S., its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S..
5,10,20,50,1000kN Or Customized Column Type Load Cell FA407B is a model of Column Type Load Cell, it belongs to FA407 in our brand FA4-Series, FA407B is used to measure load 5kN, 10kN, 20kN, 50kN and 1000kN or customized capacity, its Cable size is ⌀6x5000mm or customized length, its weight is 2kg or customized.
