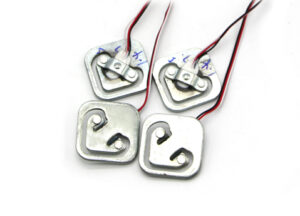

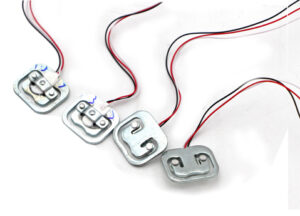

1.Super micro structure;
2.Suitable for body scale and other micro electronic equipment.
1.Super micro structure;
2.Suitable for body scale and other micro electronic equipment.
1.Aluminum alloy;
2.Very low profile;
3.Matched output;
4.Mainly used for low profile infant and adult medical scales,low profile platform
scales,personal scales,airport baggage scales,postal scales etc.
1.Aluminum alloy;
2.Very low profile;
3.Matched output;
4.Mainly used for low profile infant and adult medical scales,low profile platform
scales,personal scales,airport baggage scales,postal scales etc.
scales,personal scales,airport baggage scales,postal scales etc.

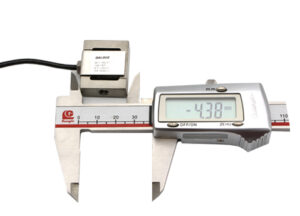

● High precision tension load cell
● Equivalent to OIML R60 C3 regulations up to 3000d for scales class III
● Protection to IP66
1.high precision, high stability, high output symmetry, and pull pressure.
2.good stability, low temperature drift and good output symmetry, compact structure,
3.suitable for electronic belt scale, hopper scale, weighing scale, electronic weighing scale, lifting hook scale and industrial automatic control system.

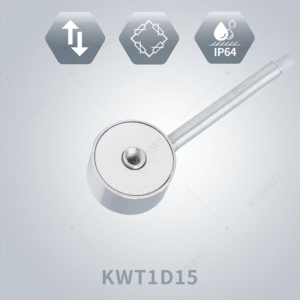

KWT1D15 series load cell has small range and compact design. It adopts multi-beam bending design, which can meet most application scenarios with limited installation space.

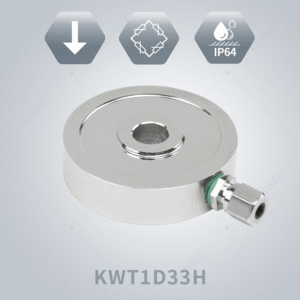

KWT1D33H is a miniature, thin washer weighing sensor, which is suitable for the applications requiring load structures to pass through the sensor. It has multiple strain gauges and a unique single srain guage design that reduces errors caused by off-axis loads. The structure has a very small deflection and suitable for the measurement of dynamic reponse.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LCT Single Point Load Cells/Miniature Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.These load cells are moment insensitive.
Model LAA-H1/H3 load cells are designed to this “single point/miniature”type and manufactured from high quality aluminum alloy of aviation standard. LAA-H1/H3 oad cells can be used to measure loads range from 150g to 750g with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-H1/H3 load cells are mainly used for pocket scales,kitchen scales,postage scales,portable scales,jewellery scales,small balances,other platform scales and coffee machine weighing systems.
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
SC132는 현재 출시된 마이크로 빔 전단 로드셀 중 가장 작은 제품입니다. 작은 크기에도 불구하고 2kg의 용량을 처리할 수 있다.
The SC132 is the smallest micro beam shear load cell available. Despite is small size, it can handle 2KG capacity which means that
SC133은 다양한 소매 및 산업 분야에 사용하도록 설계된 마이크로 빔 전단 로드셀입니다. 알루미늄으로 제작되고 양극산화 처리되어 SC133은 뛰어난 장기 정확도와 신뢰성을 제공합니다.
The SC133 is micro beam shear load cell designed for use in a wide range of retail and industrial applications. It is constructed from aluminum and anodized giving the SC133 great long term accuracy and reliability.
SC134는 체중계에 적합한 마이크로 로드셀입니다. 간편한 설치를 위해 풀 브리지 및 하프 브리지 구성으로 제공됩니다. SC134는 초박형으로 평평하거나 낮은 두께의 어플리케이션에 적합합니다. SC134의 중앙 구멍은 고객 요구에 따라 맞춤 제작 가능합니다.
The SC134 is a micro load cell ideal for body scales. It is available in Full Bridge and Half Bridge configuration for simplified installation. SC134 is ultra thin ideal for flat or low profile applications. The center hole of the SC134 can also be customized depending on customer needs.
SC135는 초박형 소형 로드셀로, 초저프로파일 계량 장비에 사용하도록 인증되었습니다. 다른 저프로파일 마이크로 로드셀과 달리 SC135는 고용량으로 작동하며 단일 지점 로드셀의 대안으로 사용하도록 설계되었습니다. 알루미늄으로 제작되었으며 포팅 소재로 환경 친화적입니다. 이 플랫 로드셀은 가벼운 무게와 간편한 장착으로 어떤 용도에도 매우 쉽게 조립할 수 있습니다.
The SC135 is an ultra thin miniature load cell is certified load cell for use in ultra low-profile weighing equipment. Unlike other low profile micro load cells, the SC135 is capable of high capacities and is designed to be used as an alternative to a single point load cell. It is constructed from aluminum and environmentally protected by potting material. This flat load cell has lightweight design and easy mounting making it very easy to assemble in any application.
SC135B는 SC135의 특수 변형 모델입니다. 동일한 로우 프로파일 바디를 사용하지만, 더 작은 설치 환경에 적합하도록 장착 지점이 다릅니다. 따라서 최대 20kg의 낮은 용량을 처리할 수 있습니다. 알루미늄으로 제작되었으며, 포팅 소재를 사용하여 환경 친화적입니다.
The SC135B is a special variant of the SC135 It shares the same low profile body but its mounting points are different to accommodate smaller setups. As such, it can handle lower capacities up to 20kg. It is constructed from aluminum and environmentally protected by potting material.
SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.
The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.
